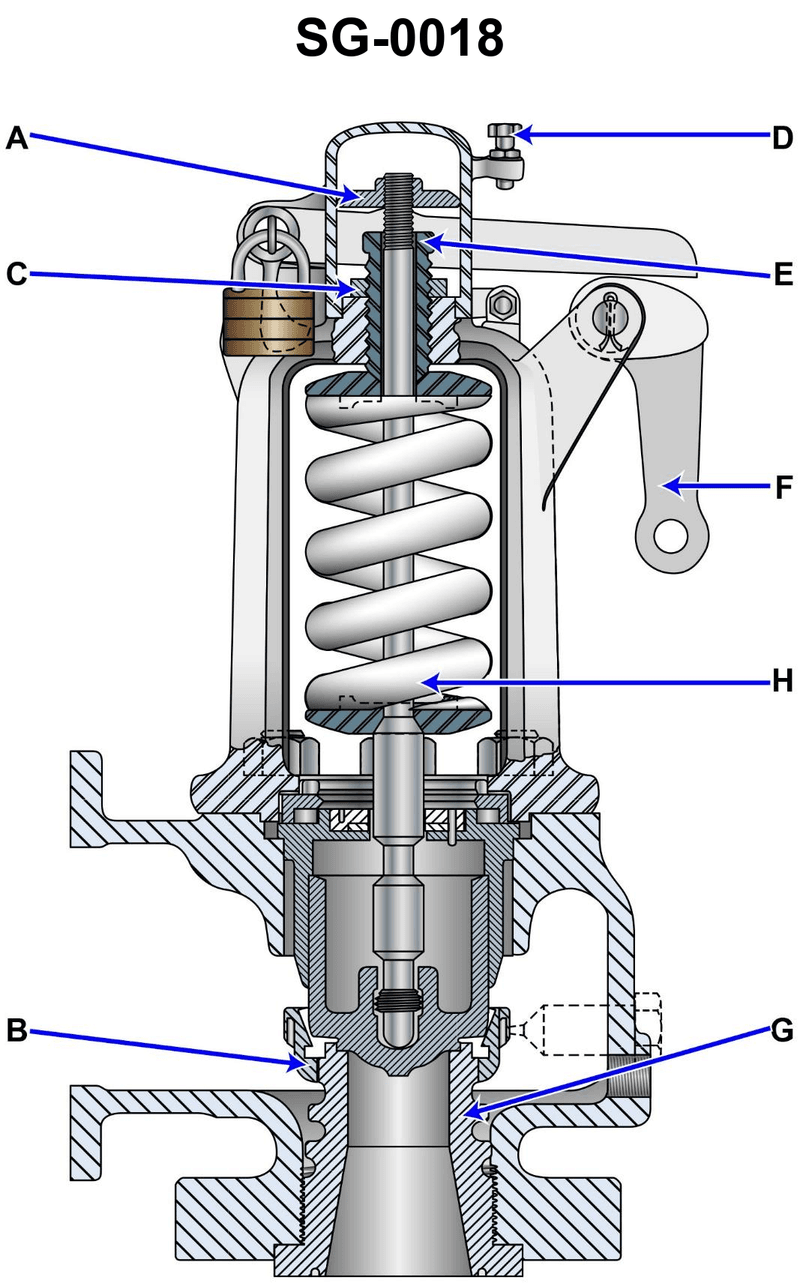

Referring to the illustrated huddling-chamber safety valve, what statement concerning the blowdown adjusting ring (B) is true? Illustration SG-0018

Back

Question 1 of 20

66636eee28f7522a1c51f0e8

Referring to the illustrated huddling-chamber safety valve, what statement concerning the blowdown adjusting ring (B) is true? Illustration SG-0018

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Blowdown is the difference between the pressure at which the safety valve pops and the lower pressure at which it reseats. • In a huddling-chamber safety valve, the blowdown adjusting ring (B) controls how much of the disc’s underside is exposed to steam pressure after the valve pops. • Changing the vertical position of ring B changes the effective pressure area in the huddling chamber and therefore how strongly the disc is held open as pressure drops.

💭 Think About

• When you raise ring B closer to the disc, does it expose more or less underside area of the disc to the huddling-chamber pressure once the valve has lifted? • If less underside area is exposed to steam pressure, will the valve tend to close at a pressure closer to the set pressure, or at a much lower pressure? How does that affect blowdown? • Which choice correctly matches: (1) what happens to exposed area when the ring is raised, and (2) whether that makes the blowdown larger or smaller? Compare each option’s two parts.

✅ Before You Answer

• Be clear on the definition of blowdown = pop pressure − reseating pressure. • Visualize ring B moving upward in the illustration: does its upper edge cover more or less of the disc skirt/secondary seat area after lift? • Check that the option you pick has both effects correct: the change in exposed area and the resulting change in blowdown direction (increase vs. decrease).

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

Referring to the illustrated huddling-chamber safety valve, what statement concerning the blowdown adjusting ring (B) is true? Illustration SG-0018

Raising the blowdown adjusting ring further increases the area of exposure to pressure after the valve pops and as a result, the valve blowdown will increase.

Raising the blowdown adjusting ring further decreases the area of exposure to pressure after the valve pops and as a result, the valve blowdown will decrease.

Raising the blowdown adjusting ring further increases the area of exposure to pressure after the valve pops and as a result, the valve blowdown will decrease.

Raising the blowdown adjusting ring further decreases the area of exposure to pressure after the valve pops and as a result, the valve blowdown will increase.
