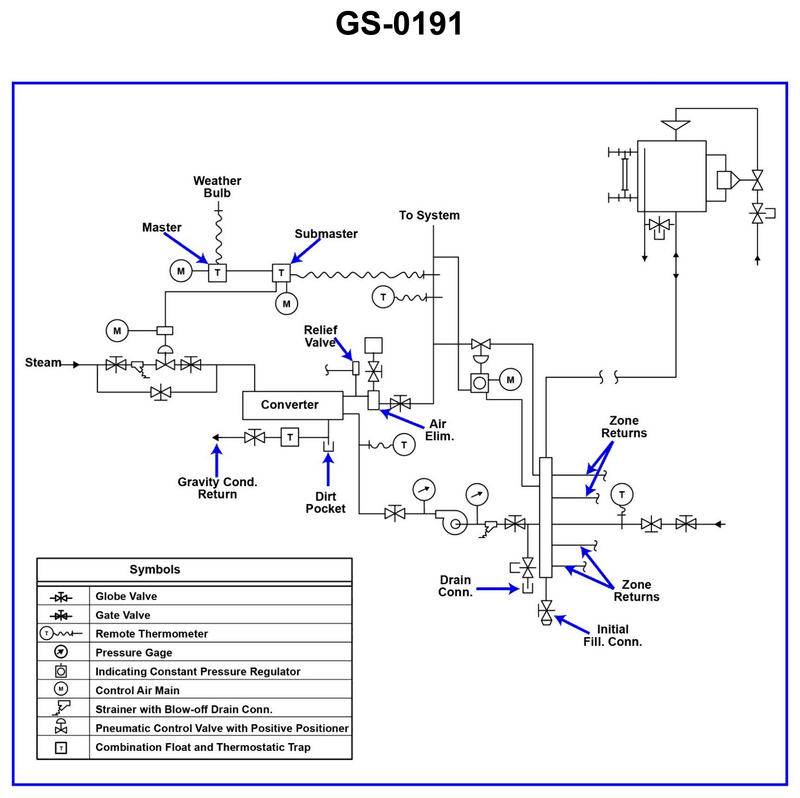

Referring to the illustrated diagram for a central-station hookup for a hot water heating system, what statement represents the configuration of the system? Illustration GS-0191
