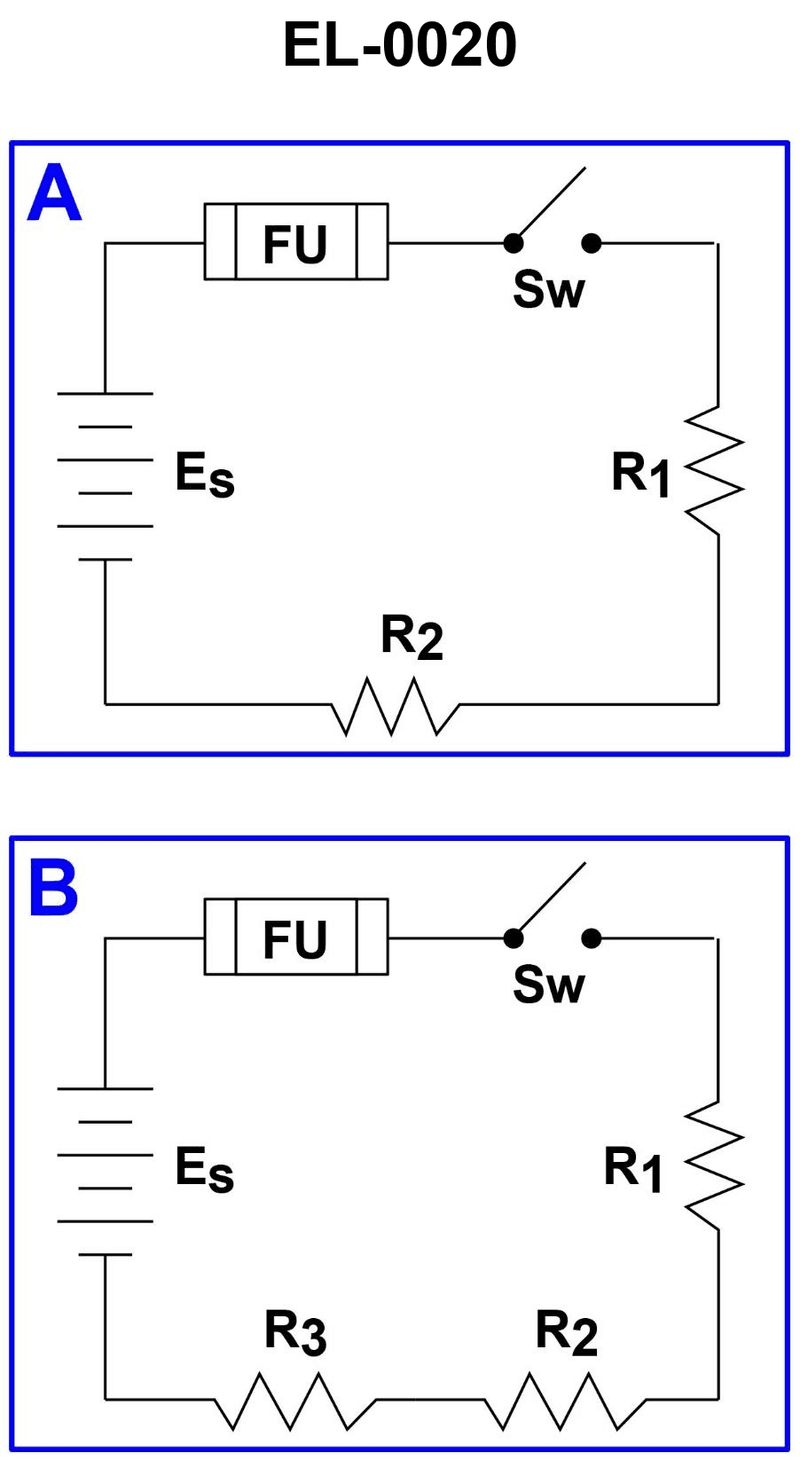

Referring to figure "B" of the illustration, what statement is true? Illustration EL-0020
Show Hint
Show Illustration
Chat with Navigator AI
A
The order of resistors connected in the series string has an impact on the total resistance. If the largest resistance is last in the circuit, the total resistance will be more than if it is not.
B
The order of resistors connected in the series string has an impact on the total resistance. If the largest resistance is first in the circuit, the total resistance will be more than if it is not.
C
The order of resistors connected in the series string has no impact on the total resistance. The total resistance of the circuit will be less than any one of the individual resistances.
D
The order of resistors connected in the series string has no impact on the total resistance. The sum of the resistances is the total resistance of the circuit.
