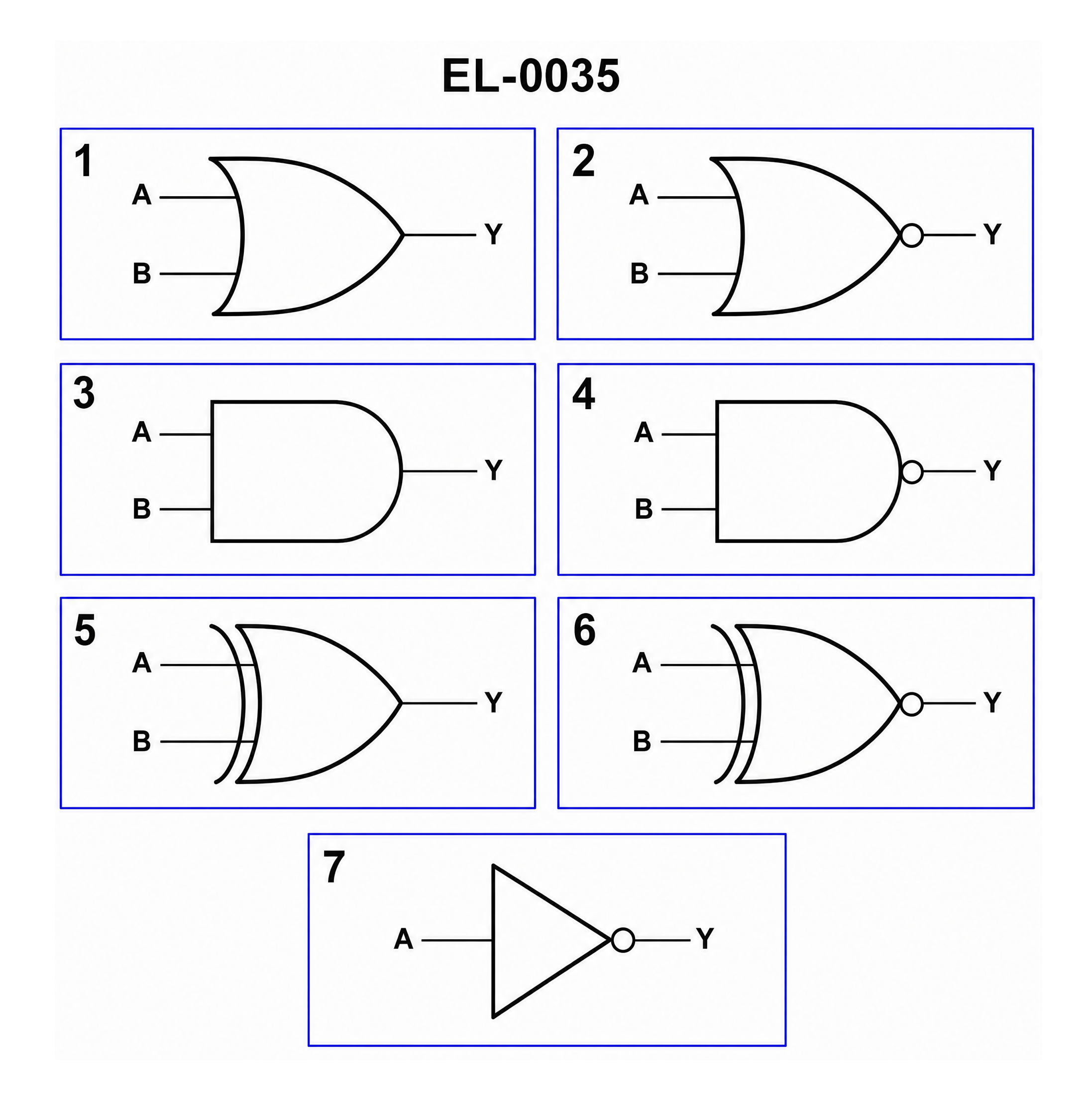

Referring to figure "4" of the illustration, what type of logic gate is symbolized? Illustration EL-0035

Back

Question 1 of 31048

Q

Referring to figure "4" of the illustration, what type of logic gate is symbolized? Illustration EL-0035

No Illustration

This question does not have an illustration

🔍 Key Concepts

• Note the basic shape of the gate in figure 4 (flat on one side vs curved like an OR gate). • Look carefully at the small circle (bubble) on the output, which indicates logical inversion (NOT). • Think about how an AND gate symbol changes when its output is inverted, and compare that to how a NOR gate is drawn.

💭 Think About

• Does the main body of the symbol in figure 4 match the standard shape of an AND gate or an OR gate before the bubble is added? • If you take the base gate you see (AND or OR) and then apply a NOT operation to its output, which of the answer choices corresponds to that combination? • Which choice names a gate that is specifically an AND function followed by inversion at the output?

✅ Before You Answer

• Verify whether the left side of the symbol is flat (typical of AND) or curved (typical of OR/XOR). • Confirm that the output bubble means logical NOT on the output of the base gate. • Match the identified base gate + NOT to the correct name among the options (AND, NOR, NAND, XOR).
