Question 1 of 2066636eed28f7522a1c51d978

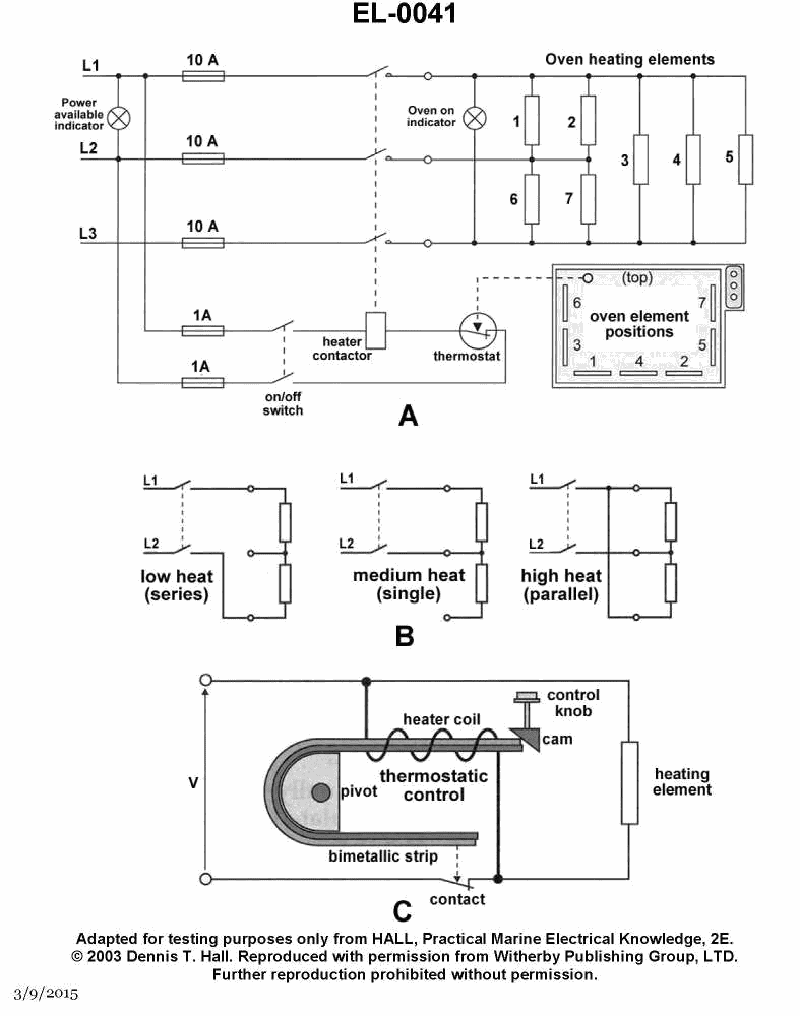

Refer to figure "A" representing an electric oven as shown in the illustration. With the oven turned on, the power available indicator light is off, the oven on indicator light is off, and only elements "6" and "7" appear to be producing heat. Which fuse is blown? Illustration EL-0041

Back

Question 1 of 20

66636eed28f7522a1c51d978

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Trace how L1, L2, and L3 feed the indicator lights and each heating element in figure A. • Distinguish between the line (10A) fuses and the control (1A) fuse, and what each one actually powers. • Notice which elements (1–7) are connected between which pairs of lines, and which pair feeds the power available light.

💭 Think About

• If the power available light is out, which pair of lines must have lost power? Look at exactly where that lamp is connected. • Only elements 6 and 7 are heating. From the wiring diagram, between which two lines are elements 6 and 7 connected? Which line is not required for them to heat? • Would blowing the 1A control fuse prevent the power available lamp from lighting, or only stop the contactor and oven‑on lamp?

✅ Before You Answer

• Verify on the diagram which lines feed the power available indicator and the oven on indicator. • Verify which heating elements are fed from L1–L2 and which (if any) are fed from a different line pair involving L3. • For each answer choice, mentally "remove" that fuse and check: Do both indicator lights go out and do only 6 and 7 still have a complete circuit?
