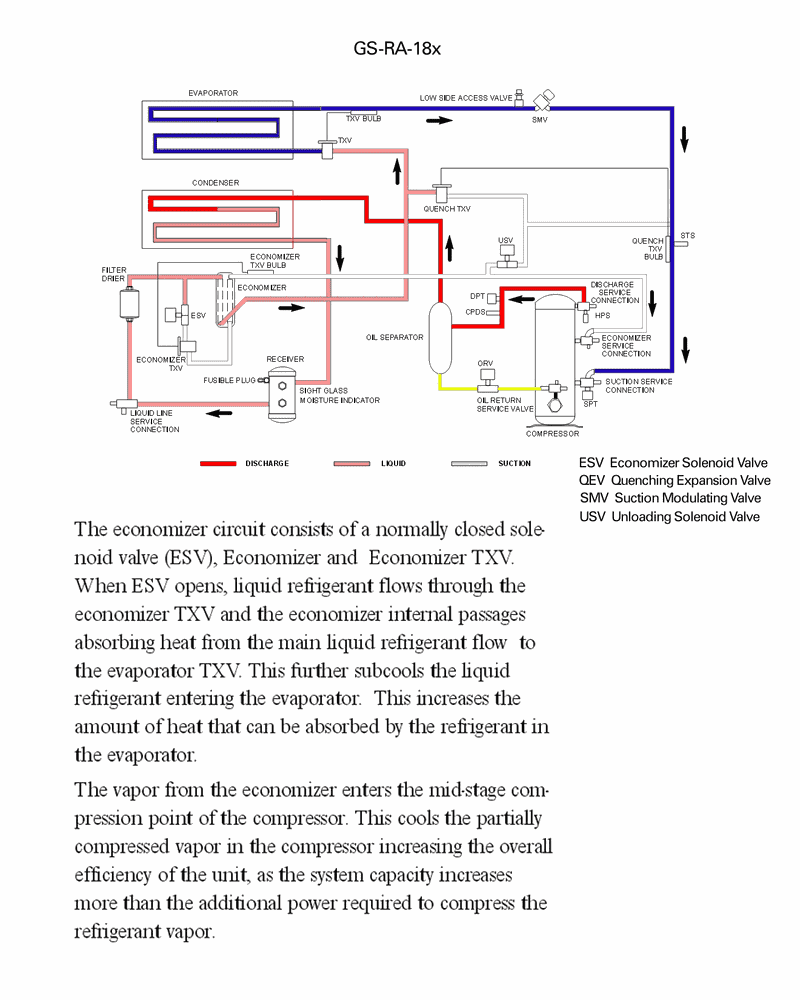

Pertaining to the illustrated refrigerated container unit piping diagram, if the current box temperature is considerably above set point, to achieve a quicker pulldown in box temperature, what would be the status of the economizer and unloading solenoid valves? See illustration GS-RA-18.

Back

Question 1 of 20

5eccef9dbacbc34ba4d46098

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Economizer solenoid valve (ESV) function as described in the text under the diagram – what happens to evaporator capacity when the economizer is operating? • Unloading solenoid valve (USV) purpose – how does "unloading" a compressor change its capacity during pull‑down? • Relationship between high box temperature above set point and whether the system should run at maximum or reduced capacity.

💭 Think About

• From the description below the diagram, decide whether operating the economizer increases or decreases the system’s ability to remove heat from the box during a heavy heat load. • Think through what the term unloading means for a compressor: during a rapid pull‑down, would you want more cylinders doing work or fewer? How does that translate to the solenoid being open or closed on this specific diagram? • Match the desired condition (fastest temperature pulldown) with the combination of valves that gives the highest net cooling capacity at the evaporator.

✅ Before You Answer

• Re‑read the paragraph that explains what happens when the ESV opens and how it affects evaporator heat absorption and overall capacity. • Trace on the diagram where the USV line goes and confirm whether an open USV sends some gas away from doing useful compression work (unloading) or keeps all cylinders loaded. • Before choosing, verify which combination of valve positions would logically give maximum compressor loading and maximum evaporator capacity at high box temperature.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

economizer solenoid valve: open unloading solenoid valve: closed

economizer solenoid valve: open unloading solenoid valve: open

economizer solenoid valve: closed unloading solenoid valve: open

economizer solenoid valve: closed unloading solenoid valve: closed
