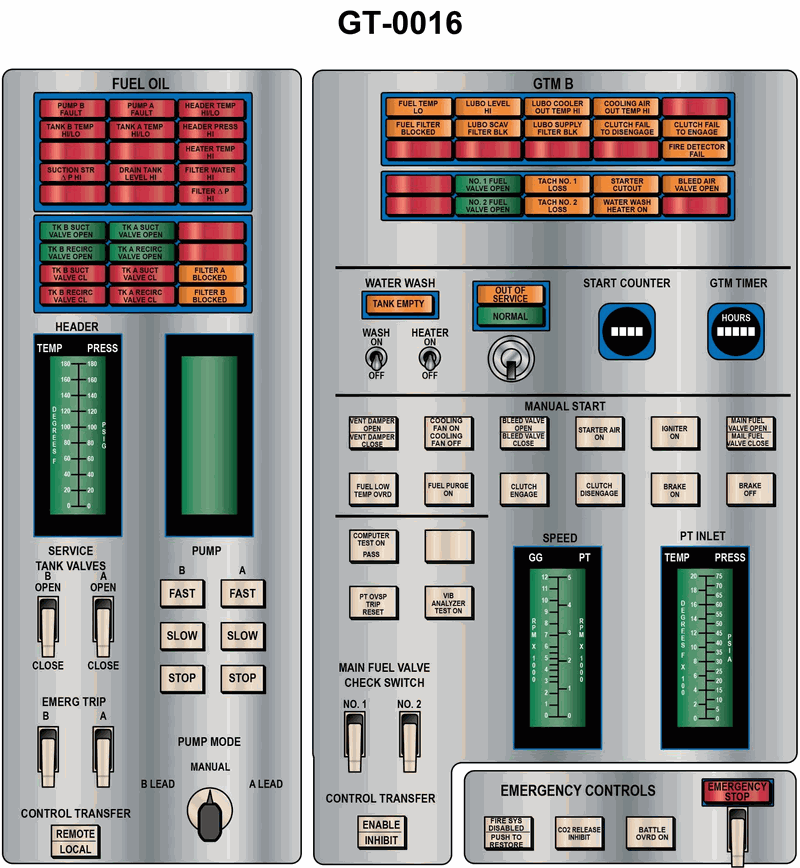

On the marine gas turbine engine panel shown in the illustration, which of the following conditions would prevent the auto-start sequence from successfully completing? Illustration GT-0016

Back

Question 1 of 20

66636eed28f7522a1c51e1a4

On the marine gas turbine engine panel shown in the illustration, which of the following conditions would prevent the auto-start sequence from successfully completing? Illustration GT-0016

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Review the auto-start sequence requirements for a marine gas turbine (air, fuel, ignition, and rotation). • Look closely at the status/annunciator lights on the GTM panel shown, especially those that indicate a fault versus a normal condition. • Think about what is absolutely essential for the turbine to accelerate up to light‑off and self‑sustaining speed.

💭 Think About

• For each option, ask yourself: would this condition stop the sequence from even getting through the basic start steps (rotation, airflow, fuel, ignition)? • Which of the listed conditions is clearly shown on the panel as a fault or abnormal indication that would lock out or trip an auto‑start? • Which items relate to propulsion/load (like propeller pitch) versus items that are required just to get the turbine itself spinning and burning fuel?

✅ Before You Answer

• Identify on the illustration which items are shown as warning or failure lights related to starting (e.g., starter, fuel valves, bleed air). • Decide which condition would prevent the compressor from being brought up to speed for light‑off — this is critical for any gas turbine start. • Make sure you distinguish between something that merely affects operating efficiency or load and something that prevents the engine from spooling up and lighting off at all.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

On the marine gas turbine engine panel shown in the illustration, which of the following conditions would prevent the auto-start sequence from successfully completing? Illustration GT-0016

Propeller pitch at zero

Bleed air valve open

Fuel supply cutoff valve opened.

Starting motor not turning.
