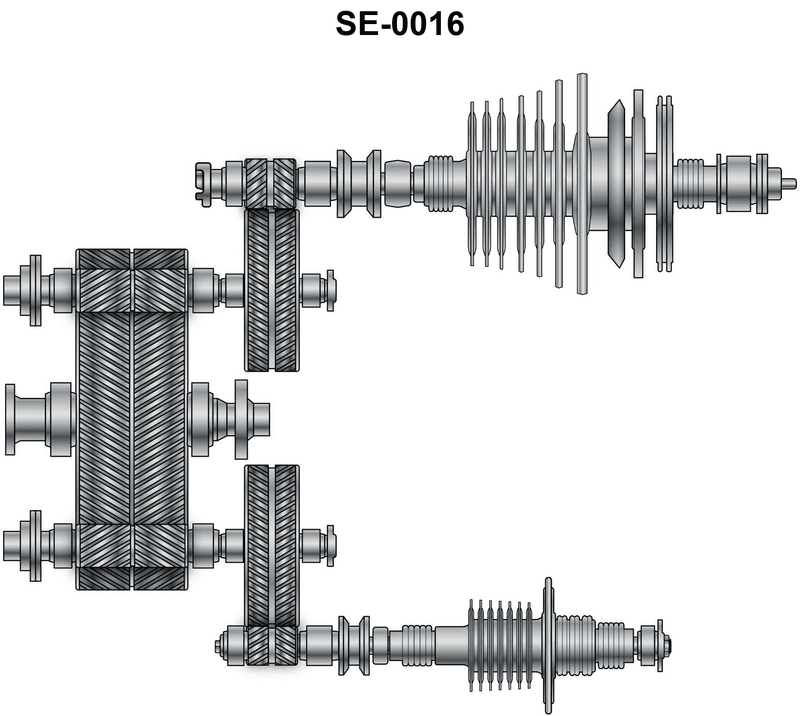

In the turbine and gear set shown in the illustration, when going astern, the minimum tolerable clearance between the rotor and intermediate or guide blading is __________. See illustration SE-0016.

Back

Question 1 of 20

5eccefa0bacbc34ba4d470e5

In the turbine and gear set shown in the illustration, when going astern, the minimum tolerable clearance between the rotor and intermediate or guide blading is __________. See illustration SE-0016.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Clearance between rotor blades and stationary (intermediate/guide) blades in a marine steam turbine • How turbine rotor expansion and movement (ahead vs astern) affects minimum safe clearances • Consequences of too little vs too much clearance on blade rub, damage, and turbine efficiency

💭 Think About

• Think about what happens to the rotor position and thermal expansion when the turbine is operated astern instead of ahead. Does the rotor move toward or away from the guide blading? • Which of the listed clearances would be large enough to avoid contact during expansion and shaft movement, but still small enough to keep steam leakage and efficiency losses within acceptable limits? • Compare the options: which values are more typical for blade tip-to-diaphragm clearances in medium‑sized marine turbines rather than for very fine clearances like journal bearings?

✅ Before You Answer

• Be sure you understand which parts in the illustration are the rotor blades and which are the intermediate/guide (stationary) blades. • Mentally allow for thermal expansion and axial movement of the rotor when changing from ahead to astern and estimate how much additional clearance is needed to prevent rubbing. • Before choosing, rule out any value that seems too small to prevent rubbing under worst‑case expansion or so large that it would cause excessive steam leakage and loss of efficiency.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

In the turbine and gear set shown in the illustration, when going astern, the minimum tolerable clearance between the rotor and intermediate or guide blading is __________. See illustration SE-0016.

.025 inch

.070 inch

.090 inch

.150 inch
