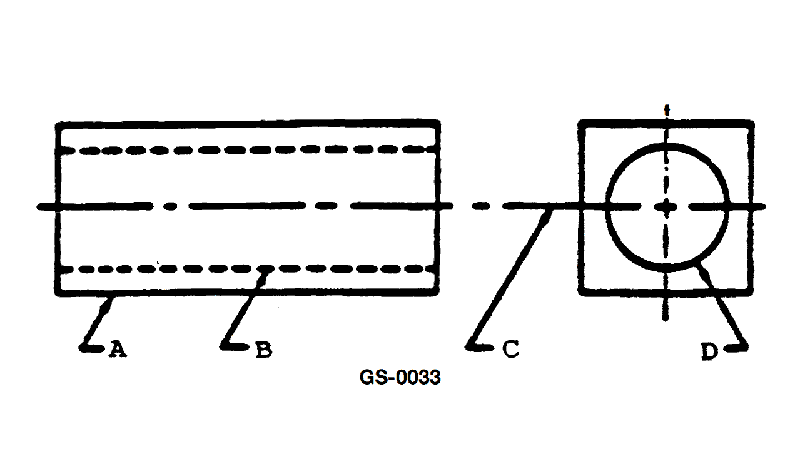

In the illustration shown, which pair of letters represent the same physical surface of the component? See illustration GS-0033.
