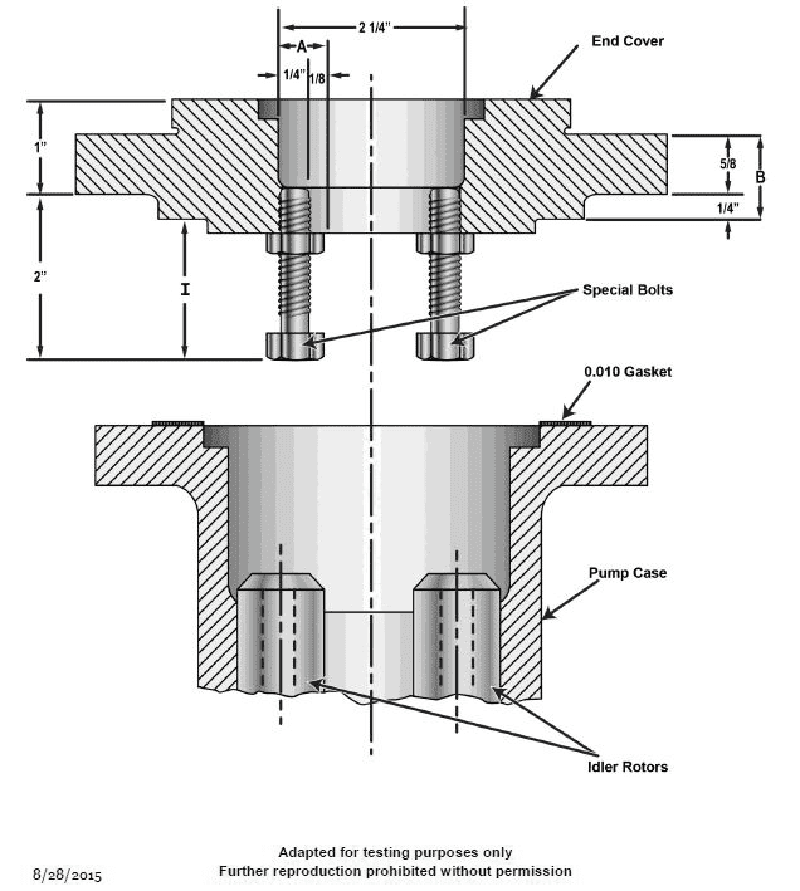

In the illustration shown, what is the distance indicated by dimension "I"? Illustration GS-0001

Back

Question 1 of 20

66636eee28f7522a1c51ebcb

In the illustration shown, what is the distance indicated by dimension "I"? Illustration GS-0001

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Carefully identify what two surfaces the dimension I is measured between on the left side of the drawing • Notice the other vertical dimensions nearby (the 1 inch and 2 inch dimensions and the 0.010 gasket thickness) and how they relate to the stack‑up of parts • Use simple addition/subtraction of these known dimensions to solve for the unknown distance I

💭 Think About

• From which exact surface on the end cover does dimension I start, and at what surface on the pump case does it end? • If you look at the total distance from the top reference line down to the lower reference line, which pieces of that distance are already labeled, and which remaining portion must be I? • How does the very thin 0.010 gasket fit into the vertical stack of parts—does it add to or reduce the clearance represented by I?

✅ Before You Answer

• Confirm that you are measuring I only between metal surfaces that actually touch or are separated by the gasket, not including bolt heads or other hardware • Double‑check that you’ve correctly added/subtracted the 1 inch, 2 inch, and 0.010 inch dimensions, keeping track of which ones are above and below the gasket • Before picking an answer, see whether your computed value is closest to one of the choices (A–D) after rounding sensibly to the nearest 1/8 inch

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

In the illustration shown, what is the distance indicated by dimension "I"? Illustration GS-0001

1 1/2 inches

1 3/4 inches

1 7/8 inches

2 inches
