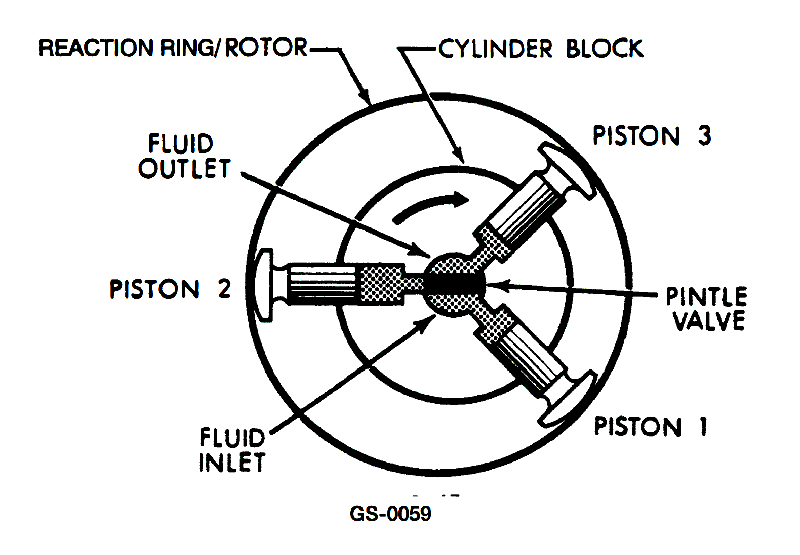

In the illustration, control over the direction and quantity of fluid flow is attained by __________. See illustration GS-0059.

Back

Question 1 of 20

5eccef9cbacbc34ba4d459a9

In the illustration, control over the direction and quantity of fluid flow is attained by __________. See illustration GS-0059.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Radial piston hydraulic pump/motor construction in the illustration (reaction ring/rotor, cylinder block, pistons, pintle valve) • How eccentricity (off-center position) between two circular parts changes piston stroke and therefore flow rate and direction • Difference between changing pump geometry vs. changing prime mover speed/direction

💭 Think About

• Look at how the pistons would move if the cylinder block center and reaction ring center were perfectly aligned. Would there be any piston stroke and fluid displacement? • If you slowly shift one circular component off-center from the other, what happens to the length and direction of each piston’s stroke as the assembly rotates? • Which choice involves changing the internal geometry of the pump itself, rather than just changing the driving motor’s speed or throttling the outlet?

✅ Before You Answer

• Identify which option talks about eccentricity or off-center positioning of parts clearly shown in the illustration (reaction ring and cylinder block). • Confirm which method would allow both reversal of flow direction and variation of flow quantity without wasting power across a throttle valve. • Eliminate any answers that depend only on prime mover speed or throttling, since those do not use the variable-displacement feature shown in the drawing.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

In the illustration, control over the direction and quantity of fluid flow is attained by __________. See illustration GS-0059.

changing the eccentricity between the reaction ring and the cylinder block

moving the cylinder block off center from the reaction (floating) ring

varying the direction of rotation and speed of the prime mover

varying the prime mover direction of rotation and throttling pump output
