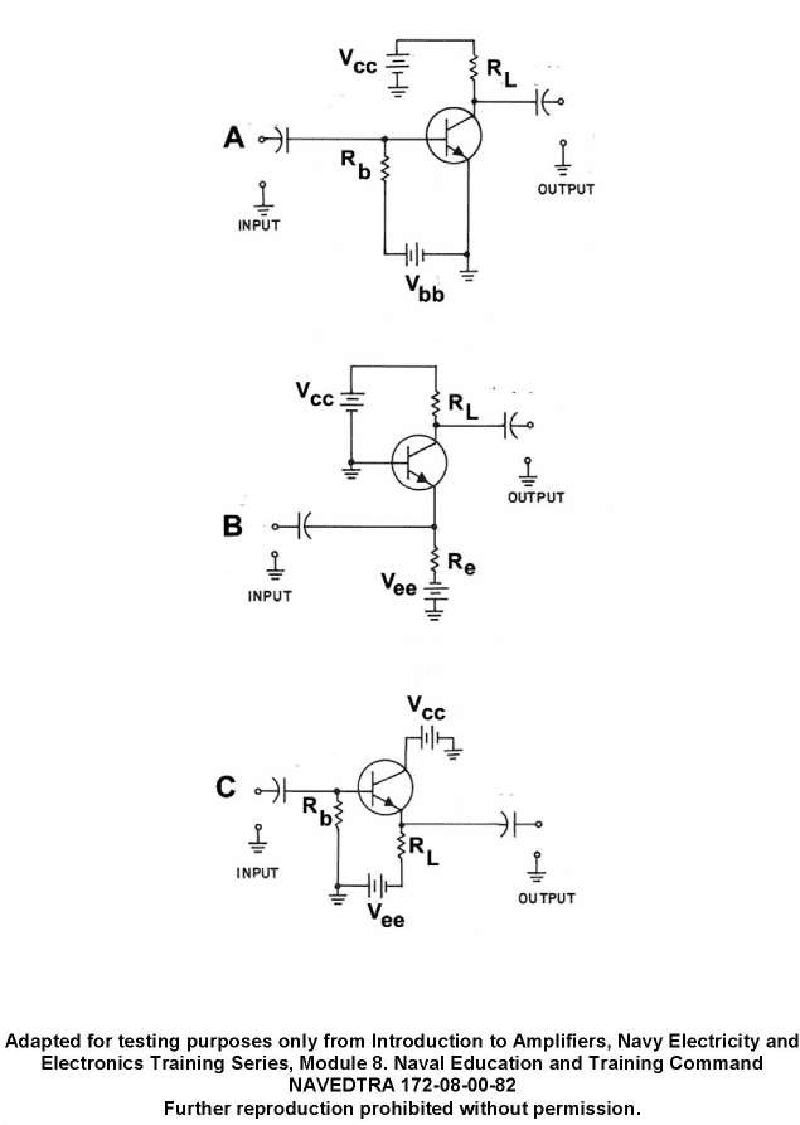

In the circuit illustrated in figure "A", the amplifier is connected in what basic configuration? See illustration EL-0022.

Back

Question 1 of 20

5eccefa5bacbc34ba4d486a5

In the circuit illustrated in figure "A", the amplifier is connected in what basic configuration? See illustration EL-0022.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Identify which transistor terminal (emitter, base, or collector) is used as the common reference between input and output in figure A • Notice where the input signal is applied and from which terminal the output is taken • Recall the defining features of common base, common emitter, and common collector (emitter follower) amplifier configurations

💭 Think About

• Which transistor terminal in figure A is directly involved with both the input and the output circuits, and which terminal does not carry the input signal? • Does the output come from the collector or the emitter in figure A, and how does that match the standard basic configurations? • Look at the biasing: does this diagram mainly show how the transistor terminals are used, or is it focusing on feedback or bias type?

✅ Before You Answer

• Verify where the input coupling capacitor connects (to base, emitter, or collector) • Verify where the load resistor RL is connected relative to the transistor (collector or emitter) • Confirm which single transistor terminal is effectively the reference (common) point shared between input and output in this circuit

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

In the circuit illustrated in figure "A", the amplifier is connected in what basic configuration? See illustration EL-0022.

common base

reverse bias, negative feedback

common emitter

common collector
