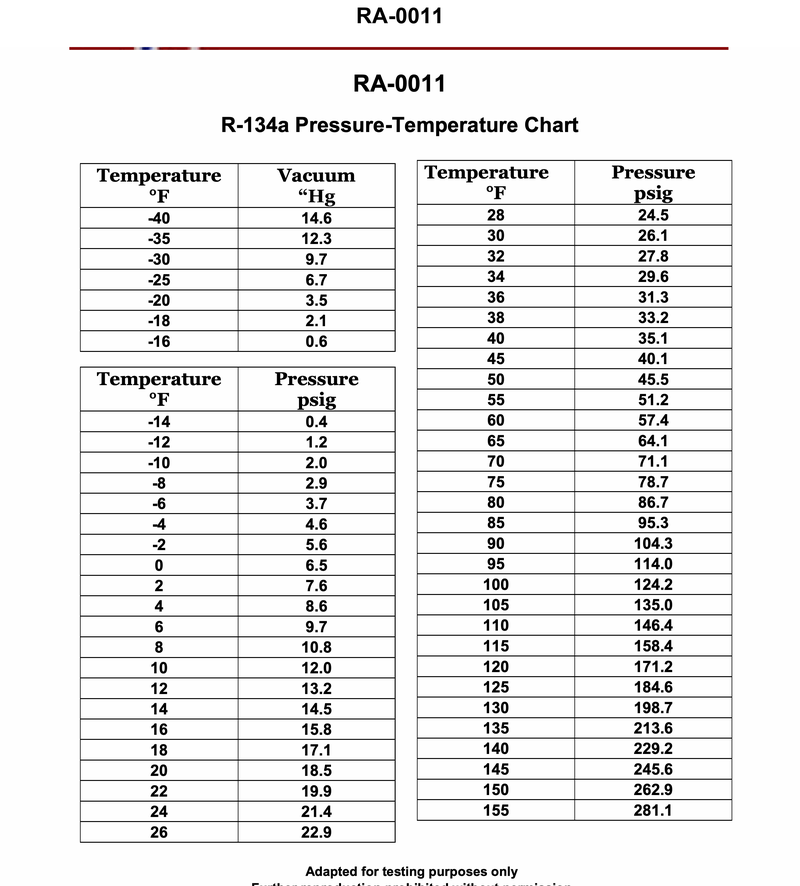

In consulting the R-134a pressure-temperature chart shown in the illustration, what would be the most likely normal running suction pressure for a reach-in freezer, assuming the box temperature is within normal range? See illustration GS-RA-11.
A
2.0 psig
B
6.5 psig
C
15.0 psig
D
27.8 psig
Loading interactive features...
Question 1 / 205eccef9dbacbc34ba4d45e5d
Question 1 of 205eccef9dbacbc34ba4d45e5d
In consulting the R-134a pressure-temperature chart shown in the illustration, what would be the most likely normal running suction pressure for a reach-in freezer, assuming the box temperature is within normal range? See illustration GS-RA-11.
In consulting the R-134a pressure-temperature chart shown in the illustration, what would be the most likely normal running suction pressure for a reach-in freezer, assuming the box temperature is within normal range? See illustration GS-RA-11.
