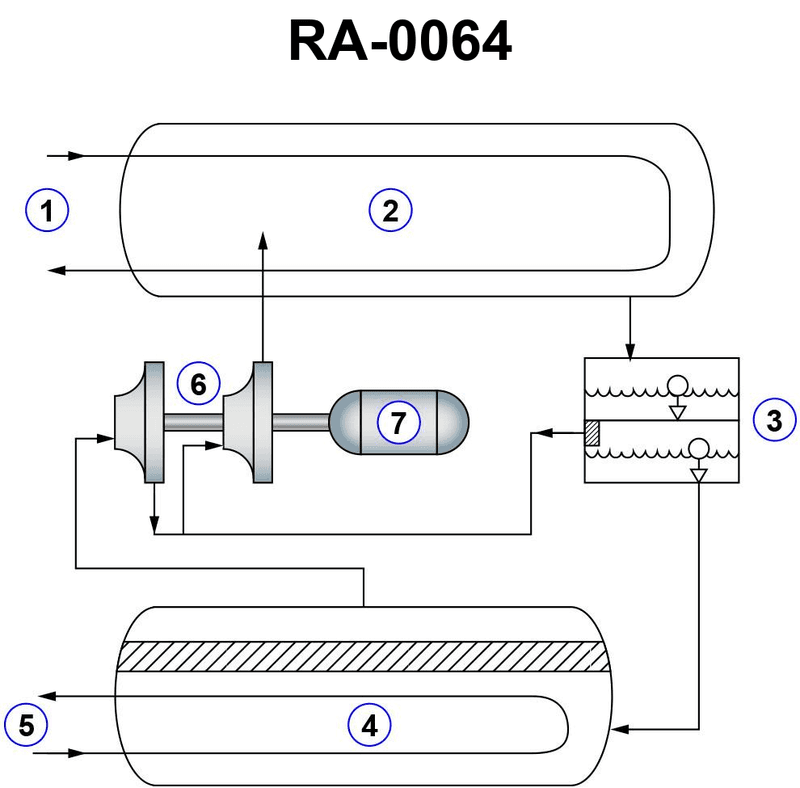

In a two-stage centrifugal air conditioning system such as the one illustrated, the liquid refrigerant passes from the condenser directly to what component? Illustration RA-0064
