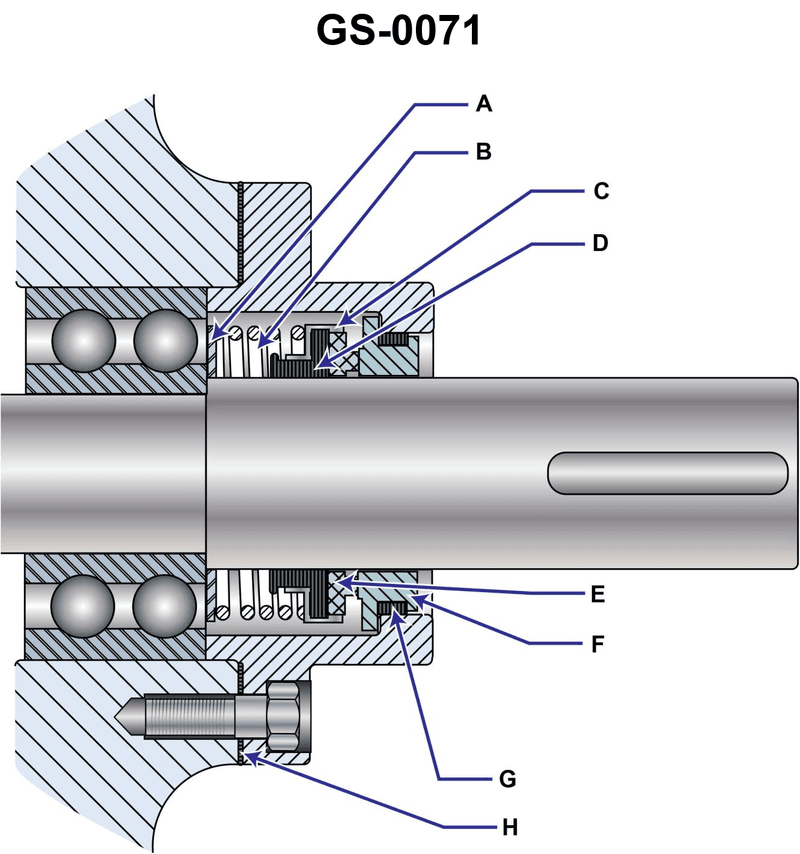

In a six month period, the illustrated device has needed to be replaced twice due to excessive grinding of part "E". Which of the listed aids might assist in reducing this problem? See illustration GS-0071.
