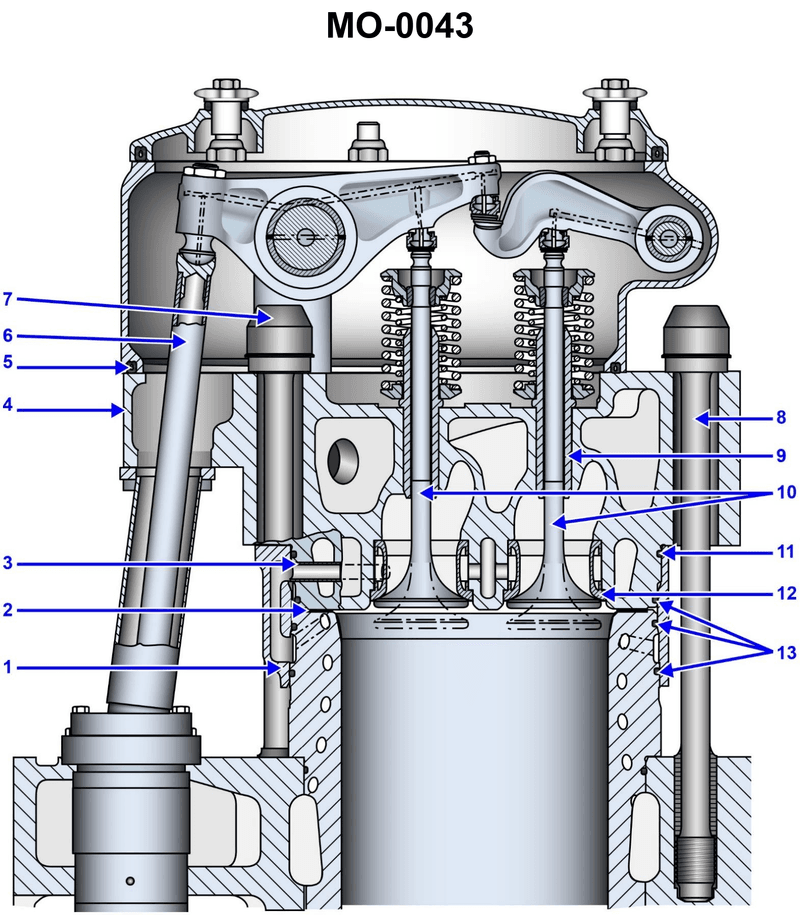

If a valve seat insert, similar to that shown in the illustration is cracked, this may be indicated by __________. Illustration MO-0043

Back

Question 1 of 27070

If a valve seat insert, similar to that shown in the illustration is cracked, this may be indicated by __________. Illustration MO-0043

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Function of a valve seat insert in a diesel engine cylinder head and what happens if it cracks • How a crack at the valve sealing surface affects gas temperature, leakage, and combustion in that cylinder • Which listed symptoms would be local to one cylinder versus affecting the entire system

💭 Think About

• If hot combustion gases leak past a cracked valve seat, what will that do to the temperature of that valve and the exhaust from that specific cylinder? • Which option describes something you would expect to see as a steady, ongoing condition tied to that one cylinder, rather than a brief or unrelated mechanical issue? • Think about where the crack actually is in the illustration: would it directly affect the springs, the indicator cock, or mainly the gas flow and temperature at the valve area?

✅ Before You Answer

• Identify which choice would clearly show up on only that particular cylinder when you compare it with the others. • Ask whether each symptom is directly related to gas leakage at the valve/seat interface rather than another part of the valve gear. • Eliminate any option that mainly involves mechanical linkage or external fittings that are not part of the seat insert itself.

Question 1 of 27070

If a valve seat insert, similar to that shown in the illustration is cracked, this may be indicated by __________. Illustration MO-0043

white vapor in the exhaust gas

high exhaust pyrometer readings on that particular cylinder

continuous spring surge

a jammed indicator cock
