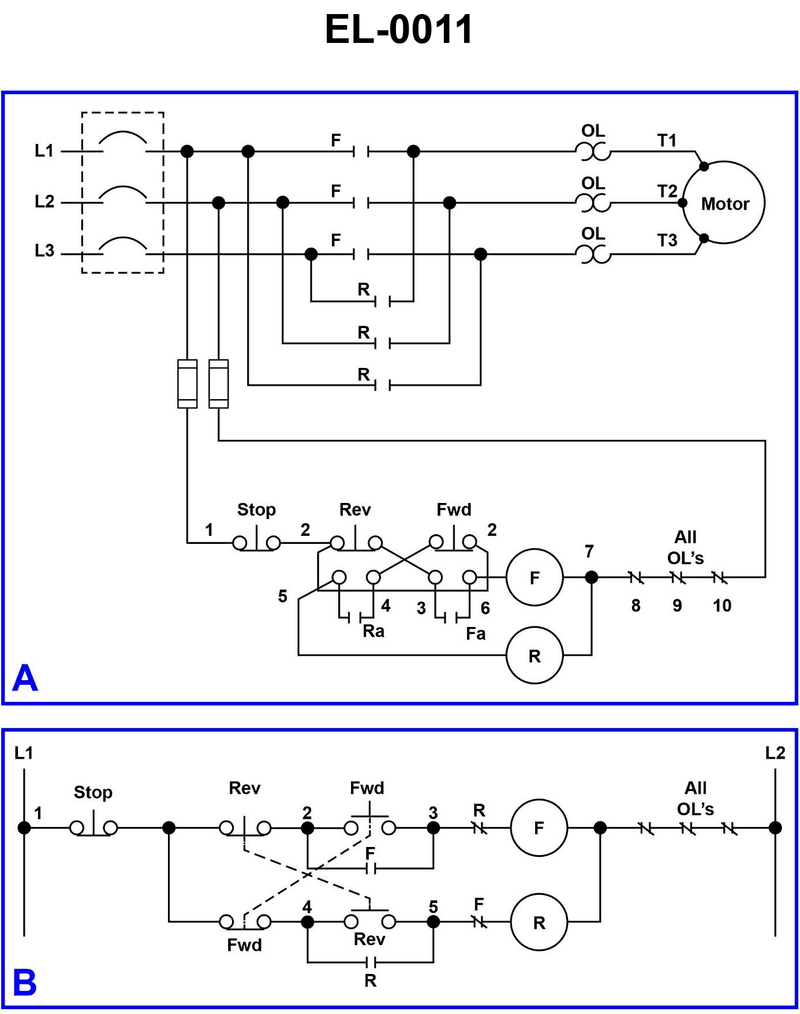

If a three-phase motor controlled by the control circuit illustrated in figure "B" of the illustration is running in the forward direction, which of the following sequences must occur before the motor will reverse rotation assuming that the stop button is depressed first? Illustration EL-0011
