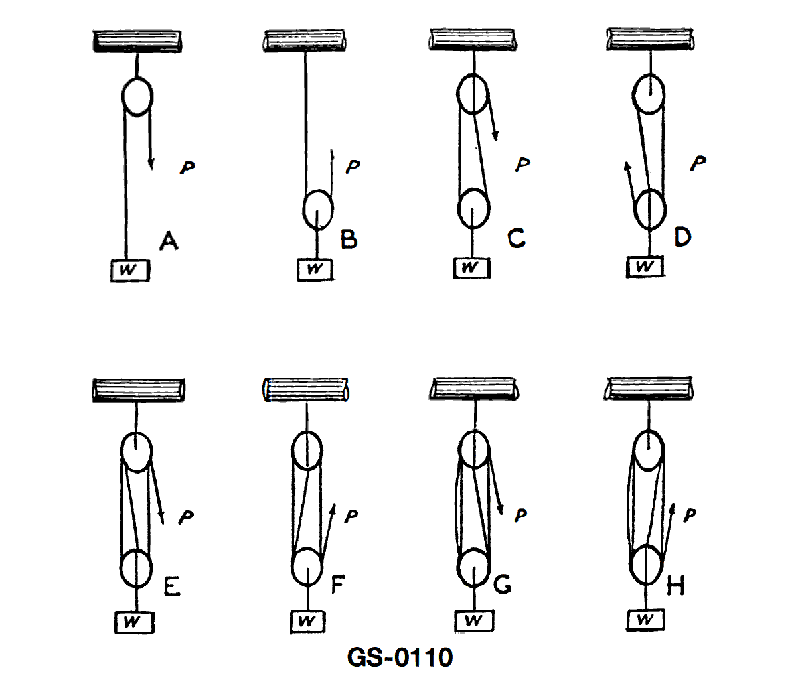

If a block and tackle arrangement were rigged as shown in figure "C" of the illustration and "W" is 250 lbs, the amount of force "P" required to hold the load stationary would be __________. See illustration GS-0110.
