Question 1 of 205eccefa5bacbc34ba4d486ee

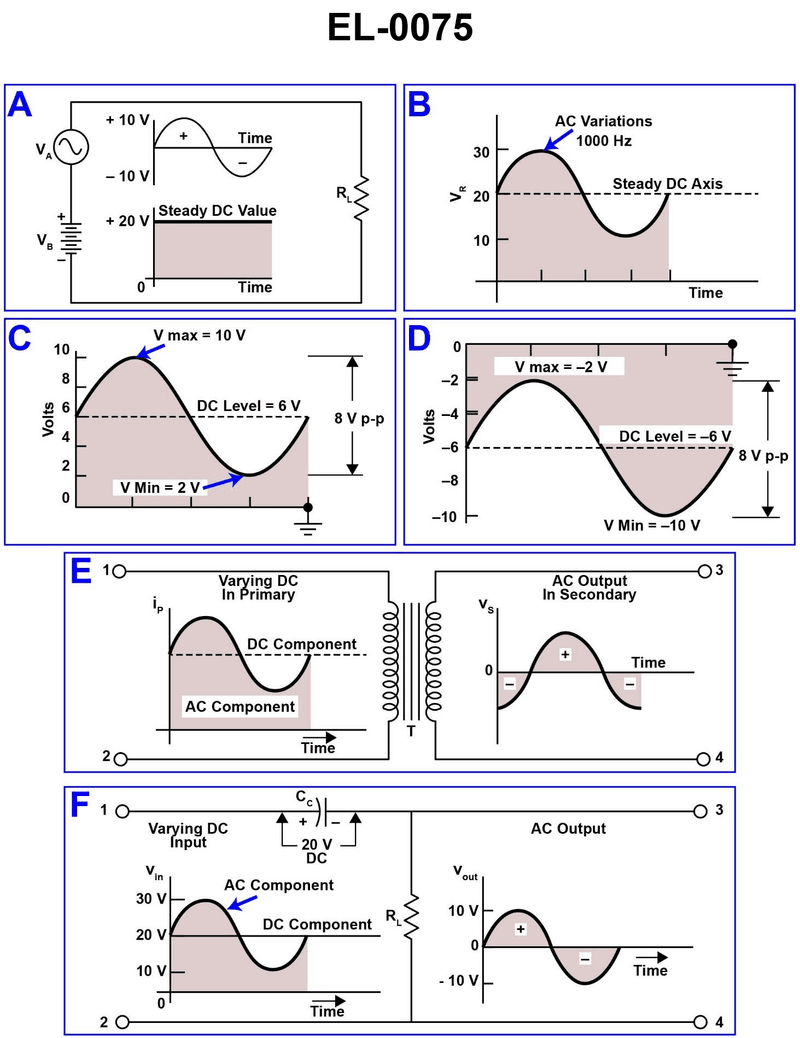

Given the circuit and input and output waveforms shown in figure "E" of the illustration, what function does the coupling transformer perform? See illustration EL-0075.

Back

Question 1 of 20

5eccefa5bacbc34ba4d486ee

Given the circuit and input and output waveforms shown in figure "E" of the illustration, what function does the coupling transformer perform? See illustration EL-0075.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Coupling transformer behavior with DC vs AC components • How the AC component of the primary waveform appears on the secondary • What a phase shift (0°, 90°, 180°) would look like when comparing two sine waves

💭 Think About

• Compare the timing of the peaks and zero crossings of the AC in the primary with the AC in the secondary in figure E. Do they occur at the same time, a quarter cycle apart, or half a cycle apart? • Look at how the DC level in the primary current is drawn relative to the secondary voltage axis. What part of the primary waveform does not show up on the secondary side? • Think about whether an ideal transformer is meant to pass DC, AC, or both. How does that relate to the shaded DC component in the figure?

✅ Before You Answer

• Verify that the DC component (the offset from zero) present in the primary waveform does or does not appear in the secondary waveform. • Check whether the positive peaks and negative peaks of the secondary waveform line up in time with the corresponding peaks of the AC part of the primary waveform. • Confirm whether the drawing suggests no phase shift, a 90° shift (peaks aligned with zero crossings), or a 180° shift (positive peak aligned with negative peak).
