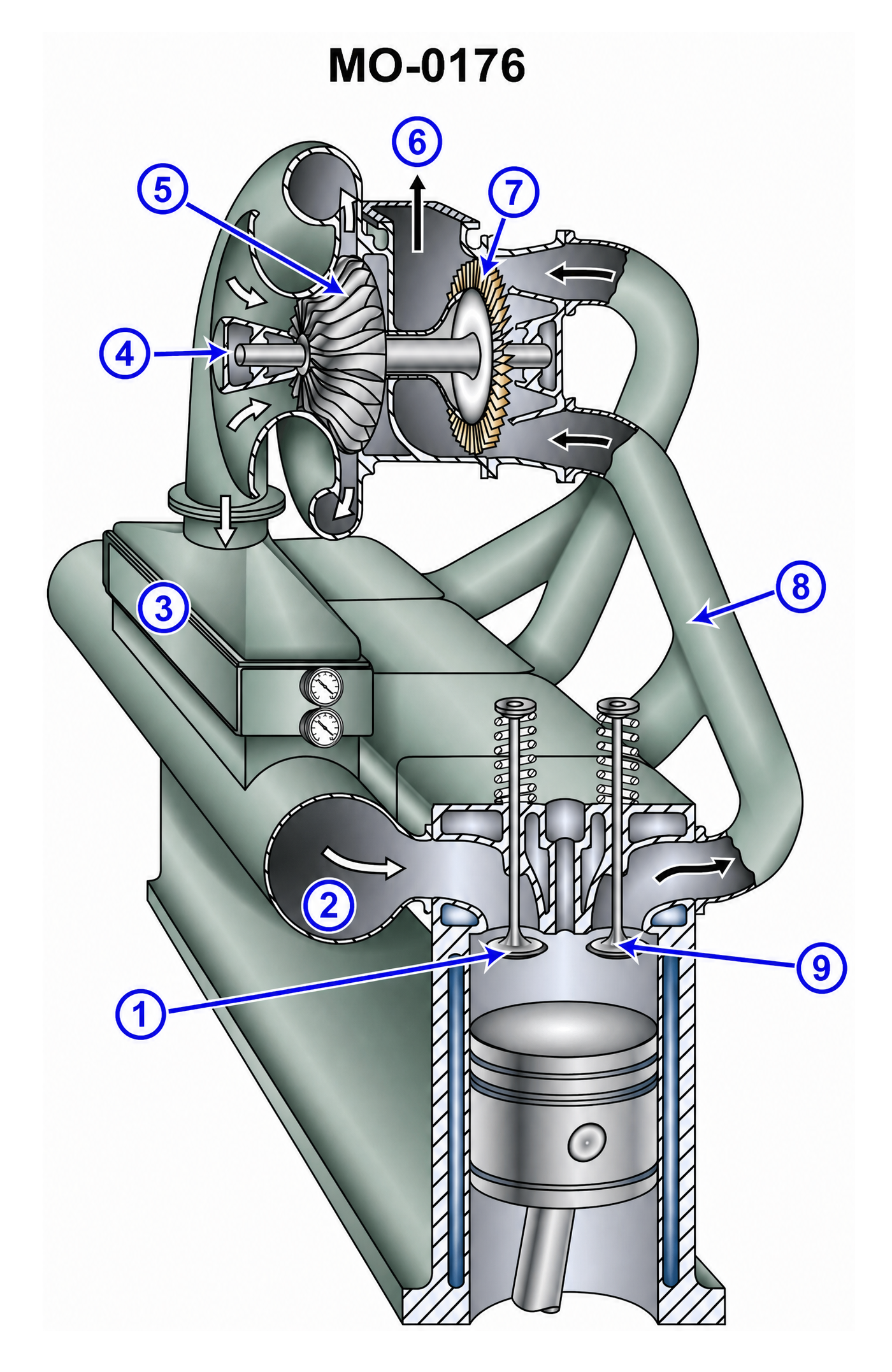

The river push boat to which you are assigned has diesel generator engines fitted with intake and exhaust systems as shown in the illustration. What type of turbo charging configuration is used? Illustration MO-0176

Question 1 of 31048

Q

The river push boat to which you are assigned has diesel generator engines fitted with intake and exhaust systems as shown in the illustration. What type of turbo charging configuration is used? Illustration MO-0176

No Illustration

This question does not have an illustration

🔍 Key Concepts

• Difference between pulse turbo charging and constant pressure turbo charging in medium-speed diesel engines • How exhaust manifold design (separate cylinder groups vs common receiver) affects turbocharger operation • What visual clues in an intake/exhaust diagram indicate one vs two turbocharger stages or any boost control devices (valves, bypasses, wastegates)

💭 Think About

• Look carefully at how the exhaust from each cylinder reaches the turbine: does each cylinder (or small group) have a relatively direct, short run to the turbine, or is there a large common exhaust receiver first? • Check whether the diagram shows one turbocharger or two in series, and whether any kind of control valve or bypass on the compressor discharge is drawn. • Ask yourself: does the configuration in the picture seem designed to keep exhaust pulses strong and separate, or to smooth them out into an even pressure feeding the turbocharger?

✅ Before You Answer

• Identify whether there is a large common exhaust manifold/receiver feeding the turbocharger, or individual/small-group branch pipes going directly to the turbine housing. • Verify whether there is only one turbocharger stage or clearly two stages in series (high‑pressure and low‑pressure). • Look for any boost control or bypass valves (such as a wastegate or similar) between the compressor outlet and the engine intake that would indicate boost-controlled operation.
