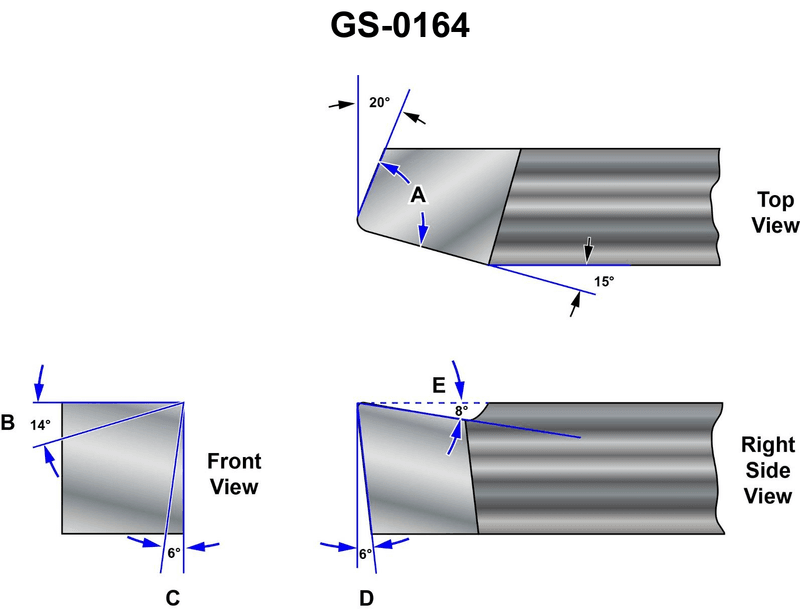

From the illustration shown, what would be the normal procedure to make adjustments to angle "E"? See illustration GS-0164.

Back

Question 1 of 20

5eccef9bbacbc34ba4d452e4

From the illustration shown, what would be the normal procedure to make adjustments to angle "E"? See illustration GS-0164.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Study the Right Side View carefully and notice what surface actually forms angle "E". • Recall which tool angles are created by grinding the tool bit itself versus by changing the position of the tool holder or workpiece. • Think about what the Tailstock Offset method is normally used for on a lathe and whether it has anything to do with tool angles.

💭 Think About

• If you wanted to change angle "E" without affecting angles B, C, and D more than necessary, which option would most directly change the surface that forms "E"? • Which options change only the position of the tool (how it sits or reaches) and which option actually changes the geometry of the cutting edge? • Ask yourself: would extending/retracting the tool or offsetting the tailstock change that top surface angle shown as 8°, or just where the tool cuts?

✅ Before You Answer

• Verify what angle E represents (is it a clearance angle, rake angle, or related to tool overhang?). • Eliminate any choices that are clearly used for taper turning or length/overhang adjustments, not angle changes. • Focus on the choice that alters the shape of the cutting face that creates the 8° angle, not just the mounting or position of the tool.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

From the illustration shown, what would be the normal procedure to make adjustments to angle "E"? See illustration GS-0164.

Rock the tool holder on its base.

Remove the tool bit and regrind.

Extend or retract the tool bit in the tool holder.

Use the Tailstock Offset method.
