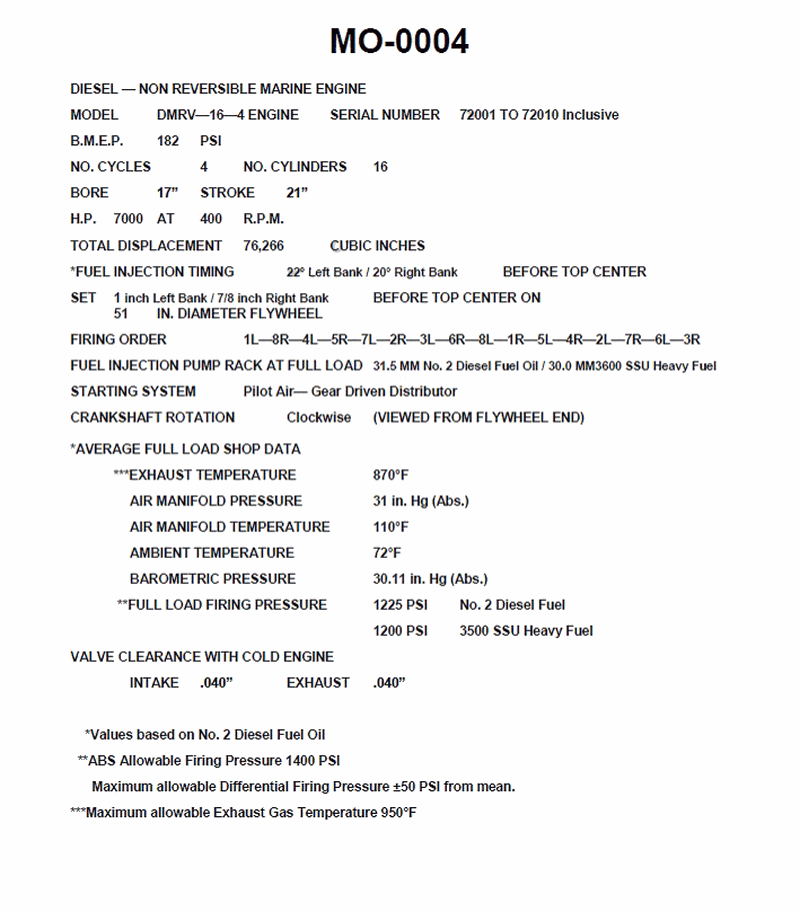

From the engine data shown in the illustration, what would be the average piston speed if the engine were turning 400 RPM? See illustration MO-0004.

Back

Question 1 of 20

5eccefa1bacbc34ba4d473bd

From the engine data shown in the illustration, what would be the average piston speed if the engine were turning 400 RPM? See illustration MO-0004.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Locate the stroke length in inches on the MO-0004 data sheet and remember that one revolution moves the piston from TDC to BDC and back. • Recall the standard formula for average piston speed in a reciprocating engine and how RPM and stroke length are used in it. • Be careful with unit conversions from inches to feet and from revolutions per minute to feet per minute.

💭 Think About

• From the data sheet, what is the stroke of this engine, and how many stroke lengths does the piston travel in one crankshaft revolution? • Once you write the piston-speed formula using stroke (in feet) and RPM, what numerical value do you obtain when you substitute 21 inches and 400 RPM? • After calculating, which answer choice is closest to your computed feet-per-minute value?

✅ Before You Answer

• Verify that you used 21-inch stroke and converted it correctly to feet before multiplying. • Confirm that your formula includes the factor of 2 × stroke × RPM for a four-stroke piston’s round trip each revolution. • Double‑check the final units are feet per minute (ft/min) before comparing with the answer choices.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

From the engine data shown in the illustration, what would be the average piston speed if the engine were turning 400 RPM? See illustration MO-0004.

1300 ft/min

1400 ft/min

1450 ft/min

1500 ft/min
