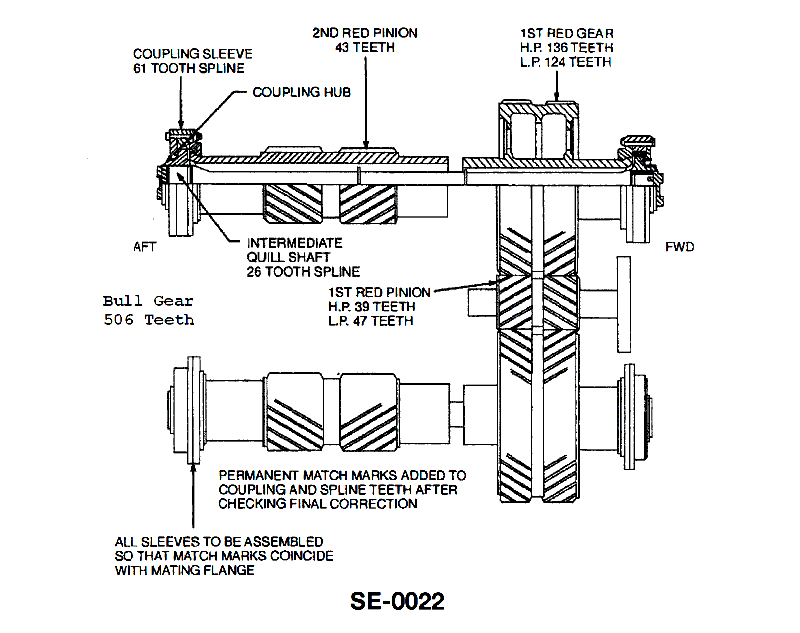

From the data shown in the illustration, what would be the speed of the L.P. turbine rotor if the propeller shaft was turning at 90 RPM? See illustration SE-0022.
