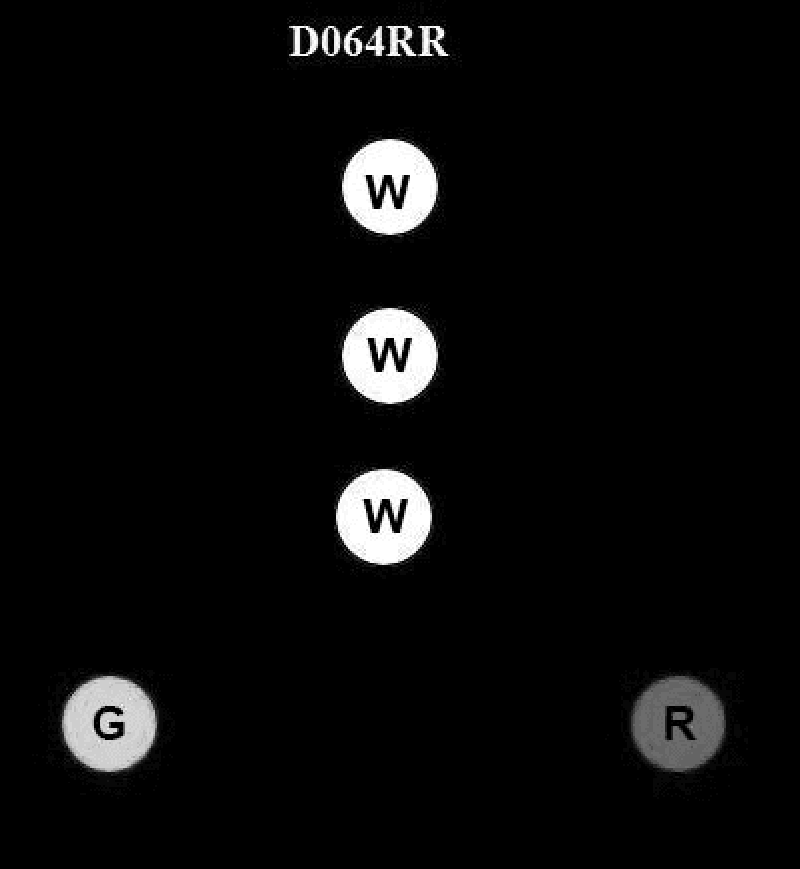

BOTH INTERNATIONAL & INLAND You see the display of lights shown in illustration D064RR below. These lights could indicate which of the following?

Back

Question 1 of 20

66636eeb28f7522a1c51bbcb

BOTH INTERNATIONAL & INLAND You see the display of lights shown in illustration D064RR below. These lights could indicate which of the following?

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Rule 24 – Towing and Pushing (look at how many masthead lights are shown for different towing situations) • Difference between masthead lights (white, forward and high) and all-round lights used for special conditions like Not Under Command or Restricted in Ability to Maneuver • What lights you can and cannot see from ahead of a tug with a tow

💭 Think About

• Count the vertical white lights and match that number to the specific towing arrangement described in Rule 24 – which situation uses three white lights in a vertical line? • From right ahead, would you see any stern or towing lights? How does that affect which options are realistic? • Do any of the answer choices describe a vessel that would show red‑white‑red or other all‑round special lights instead of simple white masthead lights?

✅ Before You Answer

• Verify in Rule 24 how many masthead lights are shown for (1) pushing ahead, (2) towing alongside, and (3) towing astern with tow over 200 meters. • Confirm that a vessel not under command or restricted in ability to maneuver uses all‑round red/white lights, not just ordinary masthead lights. • Make sure the option you pick could logically show three white masthead lights in a vertical line, plus sidelights, as seen from ahead.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

BOTH INTERNATIONAL & INLAND You see the display of lights shown in illustration D064RR below. These lights could indicate which of the following?

60-meter tug pushing a barge ahead

tug unable to maneuver as required by the Rules

40-meter tug with tow exceeding 200 meters

range marking a channel beneath a drawbridge
