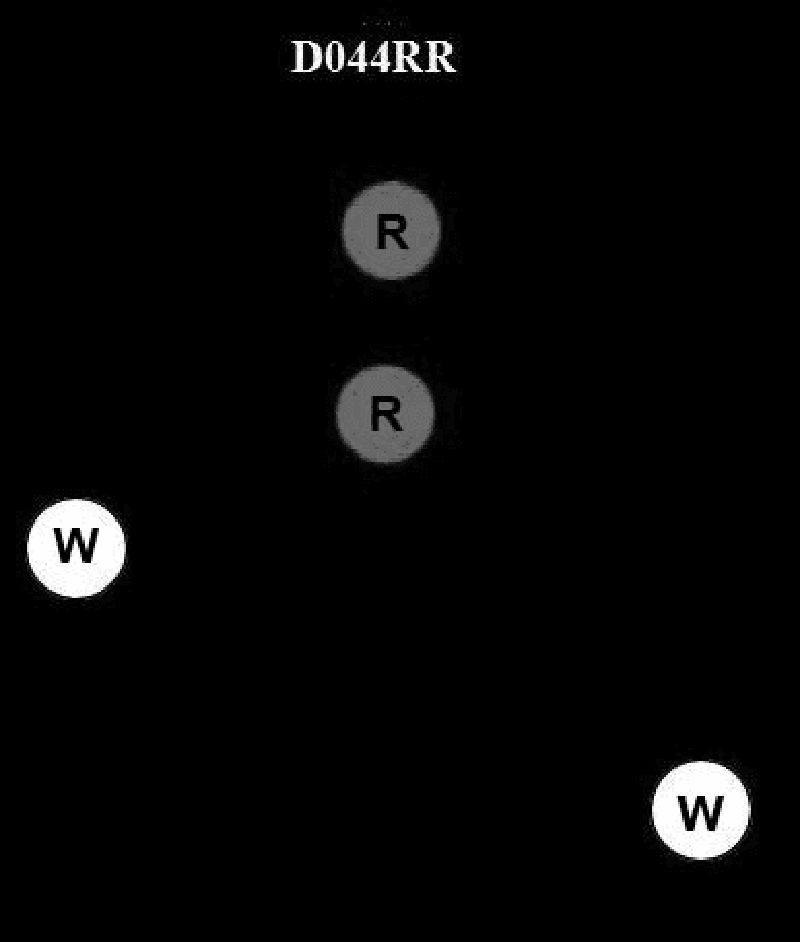

BOTH INTERNATIONAL & INLAND The lights displayed in illustration D044RR below would be shown by a vessel described by which of the following?

Back

Question 1 of 27070

BOTH INTERNATIONAL & INLAND The lights displayed in illustration D044RR below would be shown by a vessel described by which of the following?

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Rule 27 – Vessels Not Under Command or Restricted in Their Ability to Maneuver (Navigation Rules) • Rule 30 – Anchored and Aground Vessels (Navigation Rules) • Difference between a vessel making way and dead in the water and what additional running lights are (or are not) shown

💭 Think About

• First identify what the TWO all‑round red lights in a vertical line indicate under the Rules. Which type of vessel shows that signal? • Next, look carefully at the LOWER white lights in the picture. Ask yourself: are these anchor lights, running lights (like sidelights or sternlight), or something else? How does their arrangement help you decide? • Compare what extra lights are required when that special condition vessel is making way versus when it is not making way. Which combination in the illustration matches the Rules exactly?

✅ Before You Answer

• Verify in the Rules which vessel displays two all‑round red lights in a vertical line where best seen. • Check whether a vessel aground must also show anchor light(s) in addition to the red lights, and how many anchor lights depending on length. • Confirm what additional lights (sidelights, sternlight, anchor light) are required when that vessel is making way versus dead in the water, and see which of the answer choices matches the light pattern shown.

Question 1 of 27070

BOTH INTERNATIONAL & INLAND The lights displayed in illustration D044RR below would be shown by a vessel described by which of the following?

aground

not under command and is making way

not under command and is dead in the water

laying or picking up navigation marks
