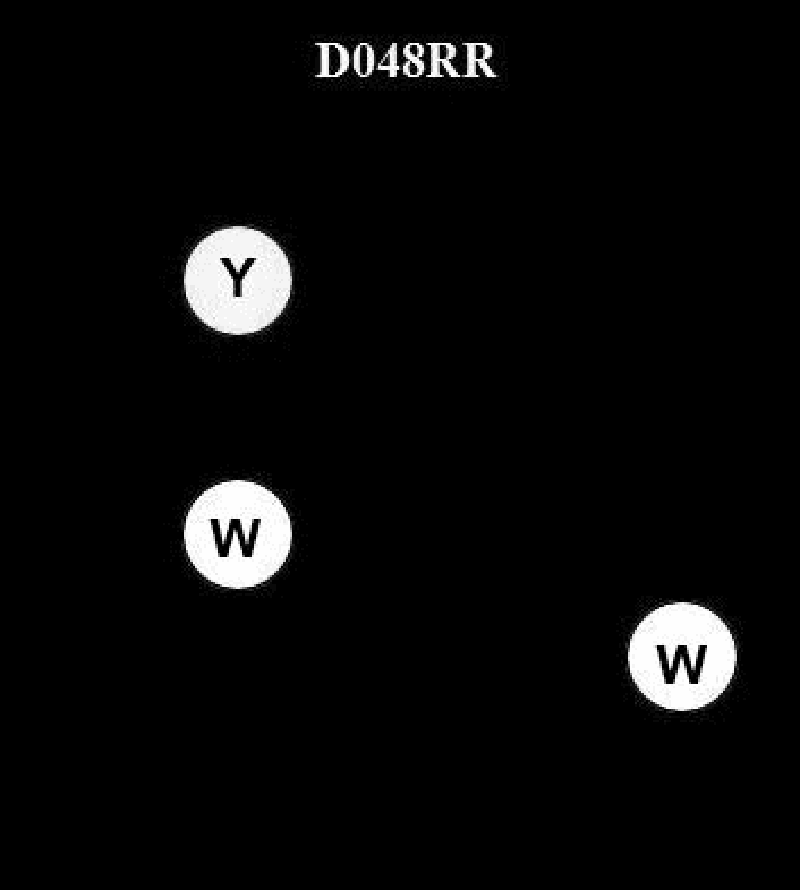

BOTH INTERNATIONAL & INLAND The display of lights shown in illustration D048RR below could represent which vessel?

Back

Question 1 of 27070

BOTH INTERNATIONAL & INLAND The display of lights shown in illustration D048RR below could represent which vessel?

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Review Rule 24 – Towing and Pushing for the stern light arrangement of a tug with a tow astern • Review Rule 27 – Vessels Not Under Command and note the required color and number of all‑round lights • Review Rule 25 – Sailing Vessels Underway and what combination of sidelights, sternlight, and optional all‑round lights they may show

💭 Think About

• Look carefully at the colors shown (Y for yellow, W for white) and whether any of them are in a vertical line versus separated horizontally • Ask yourself: which of the listed vessel types uses a yellow light combined with a white light as a distinctive night‑time signal? • Consider where on the vessel these lights would be located (stern area vs. mast), and which option’s rule description matches that pattern

✅ Before You Answer

• Verify in Rule 24 whether a yellow light over a white light is associated with towing and how it is shown at the stern • Verify in Rule 27 that a vessel not under command uses red all‑round lights, not yellow and white • Verify in Rule 25 that a sailing vessel underway does not use yellow lights in her standard light configuration

Question 1 of 27070

BOTH INTERNATIONAL & INLAND The display of lights shown in illustration D048RR below could represent which vessel?

a submarine on the surface

a tug and a barge being towed astern

a vessel not under command

a sailing vessel
