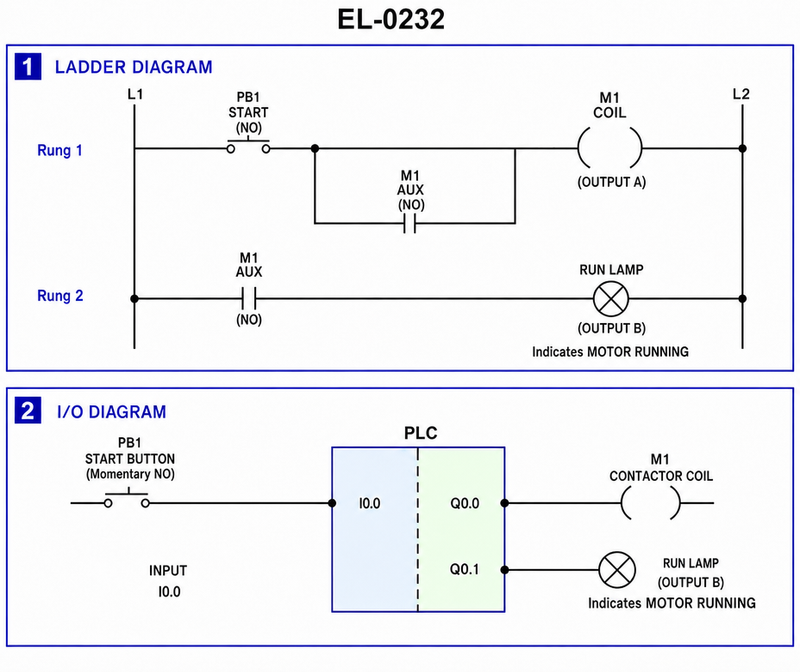

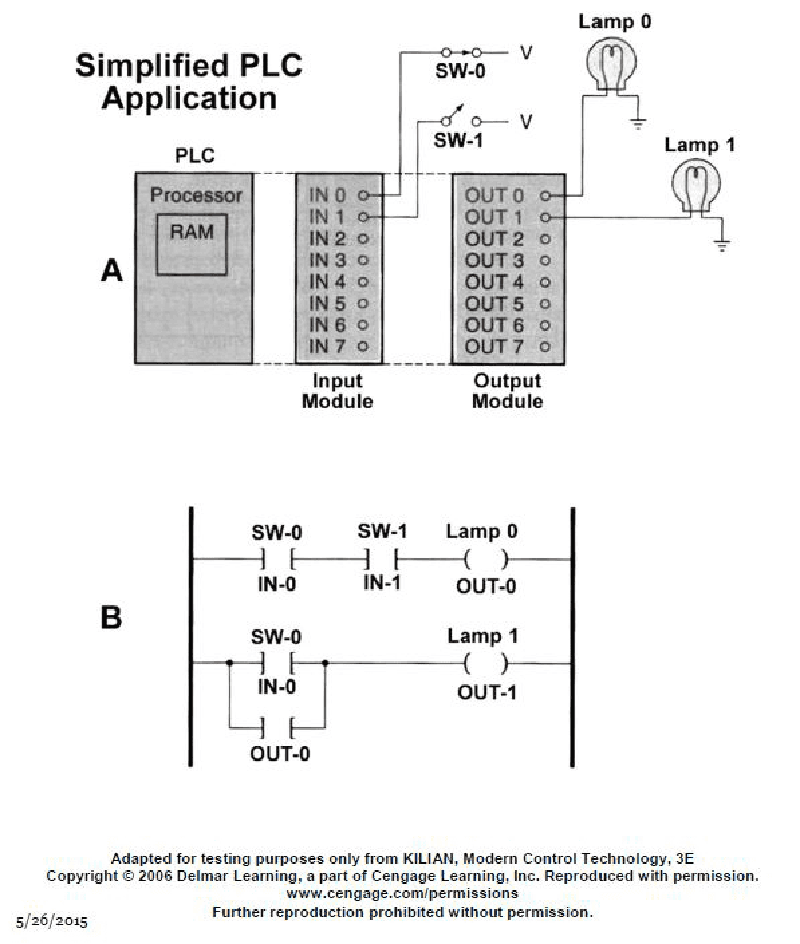

Assuming the ladder diagram of figure "1" and the corresponding input/output diagram of figure "2" represents a simple PLC motor controller, what statement is true? Illustration EL-0232
A
The input switch is a momentary contact start button, output "A" is the motor contactor coil, and output "B" is a motor run status lamp for the running condition.
B
The input switch is a momentary contact start button, output "A" is the motor contactor coil, and output "B" is a motor run status lamp for the stopped condition.
C
The input switch is a maintained contact on-off selector switch, output "A" is the motor contactor coil, and output "B" is a motor run status lamp for the running condition.
D
Question 1 / 2066636eed28f7522a1c51d356
Question 1 of 2066636eed28f7522a1c51d356
Assuming the ladder diagram of figure "1" and the corresponding input/output diagram of figure "2" represents a simple PLC motor controller, what statement is true? Illustration EL-0232
Assuming the ladder diagram of figure "1" and the corresponding input/output diagram of figure "2" represents a simple PLC motor controller, what statement is true? Illustration EL-0232
No comments yet
Be the first to share your thoughts!
The input switch is a maintained contact on-off selector switch, output "A" is the motor contactor coil, and output "B" is a motor run status lamp for the stopped condition.
