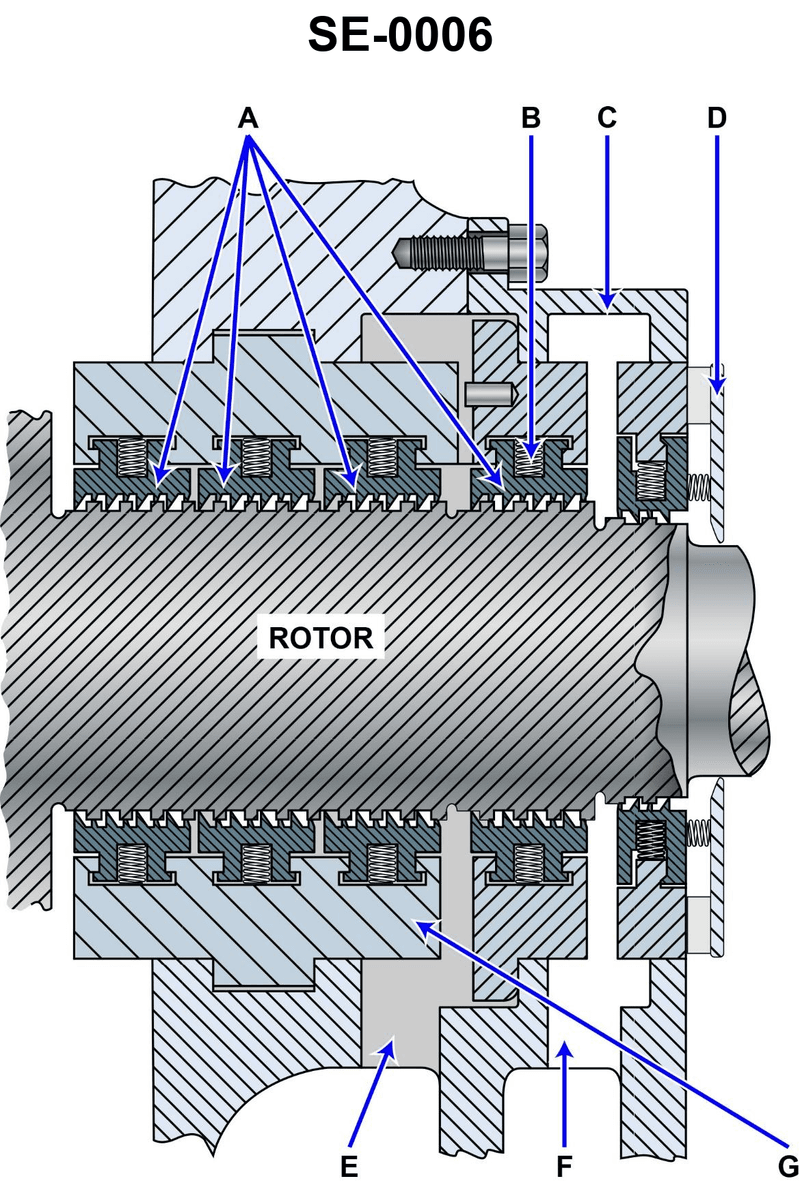

Assuming that the turbine in question is a condensing turbine, what system connections are represented by areas labeled "E" and "F" on the illustrated turbine gland? Illustration SE-0006

Back

Question 1 of 20

66636ef128f7522a1c5236cc

Assuming that the turbine in question is a condensing turbine, what system connections are represented by areas labeled "E" and "F" on the illustrated turbine gland? Illustration SE-0006

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Steam flow in a condensing turbine gland from higher pressure to lower pressure • Difference between gland sealing steam supply (positive pressure) and gland exhaust connection (to gland exhaust condenser / vacuum system) • How the location of the ports (inner vs outer side of the gland) relates to what they connect to

💭 Think About

• On a condensing turbine, which side of the gland is closer to the condenser vacuum, and which side is closer to atmosphere or higher pressure? • If sealing steam must flow toward the leak paths, should its connection be nearer the area you want to keep pressurized or nearer the suction to the exhaust condenser? • Looking at the sketch, which labeled area, E or F, appears to be the central collection/suction space that would logically be piped to a gland exhaust condenser?

✅ Before You Answer

• Identify which cavity (E or F) is the larger annular space that collects leakage from both sides of the gland – that one usually connects to the gland exhaust system. • Check which cavity is positioned so that steam entering there would naturally flow outward through the labyrinths toward higher‑leak areas – that one is typically the sealing steam connection. • Before choosing, mentally trace a path from condenser vacuum → gland → atmosphere and ensure pressures change smoothly from highest to lowest without any impossible jump.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

Assuming that the turbine in question is a condensing turbine, what system connections are represented by areas labeled "E" and "F" on the illustrated turbine gland? Illustration SE-0006

Both "E" and "F" represent the gland sealing steam system connections.

Both "E" and "F" represent the gland exhaust steam system connections.

"E" represents the gland sealing steam system connection and "F" represents the gland exhaust steam system connection.

"E" represents the gland exhaust steam system connection and "F" represents the gland sealing steam system connection.
