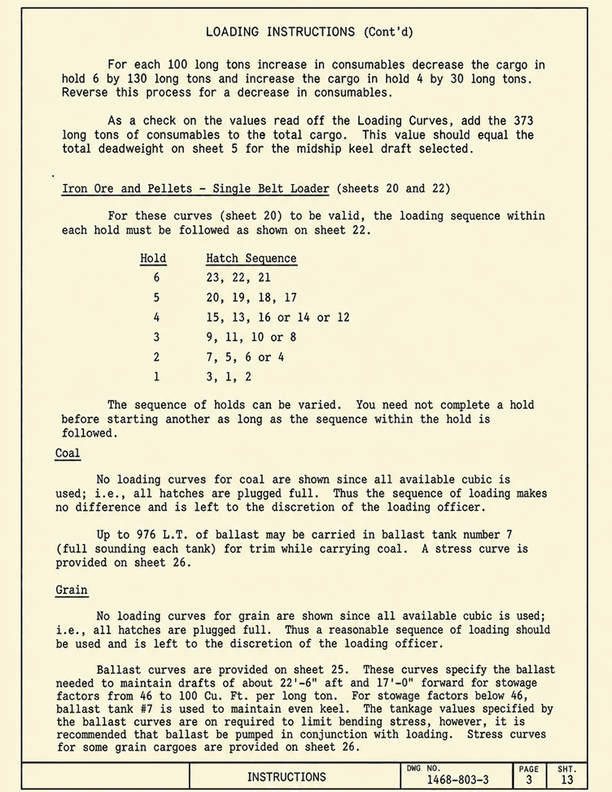

Assuming that the recommended hatch loading sequence is followed, how many long tons of iron ore may be loaded through hatch No. 3 while using a single belt loader to arrive at a desired mean keel draft of 27'-07"? (Use the Guidance Manual for Loading M.V. GRAND HAVEN.)

Back

Question 1 of 29218

No Illustration

This question does not have an illustration

🔍 Key Concepts

• Loading sequence for M.V. GRAND HAVEN in the Guidance Manual (which hatch or hatches must be partly/fully loaded before No. 3) • How loading one additional hatch affects the ship’s mean draft and trim when using a single belt loader • Using tables/curves in the manual to relate tons loaded in a specific hatch to change in mean keel draft

💭 Think About

• First, determine from the manual what the vessel’s condition is (draft and trim) right before you start loading through hatch No. 3 in the recommended sequence. • Then, use the appropriate table/curve for hatch No. 3 to see how many tons can be added before the mean draft reaches 27'-07". • Compare the mean drafts for different tonnages loaded in hatch No. 3 that are close to the answer choices and see which one gets you closest to but not beyond the target mean draft.

✅ Before You Answer

• Verify you are using the correct loading step for hatch No. 3 in the recommended belt‑loader sequence (do not start from lightship). • Confirm that you are reading the mean keel draft, not forward or aft draft, when matching to 27'-07". • Double‑check the units in the manual (long tons vs short tons and feet/inches of draft) to be sure they are consistent with the question.
