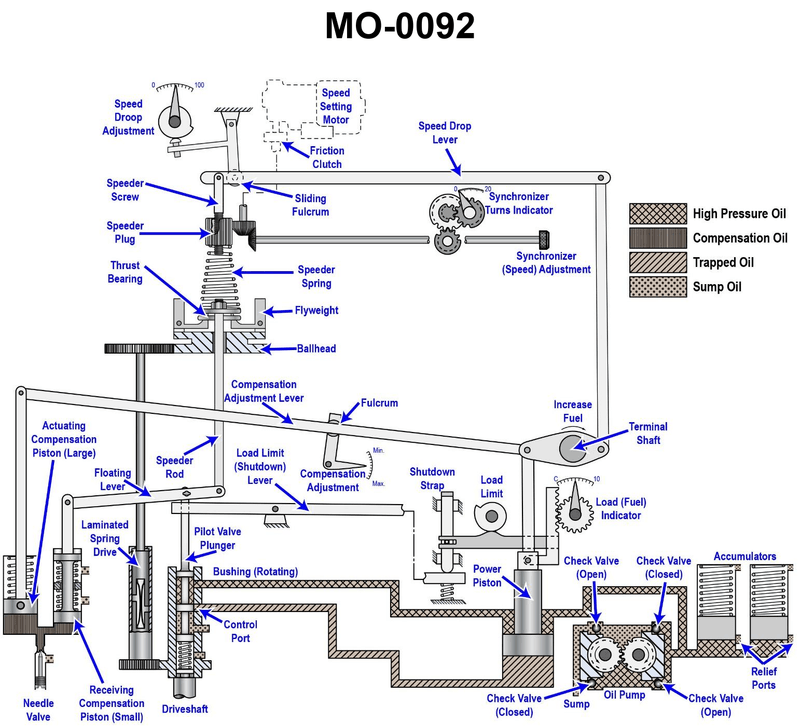

As the load is being decreased on the engine controlled by the governor shown in the illustration, the __________. Illustration MO-0092
