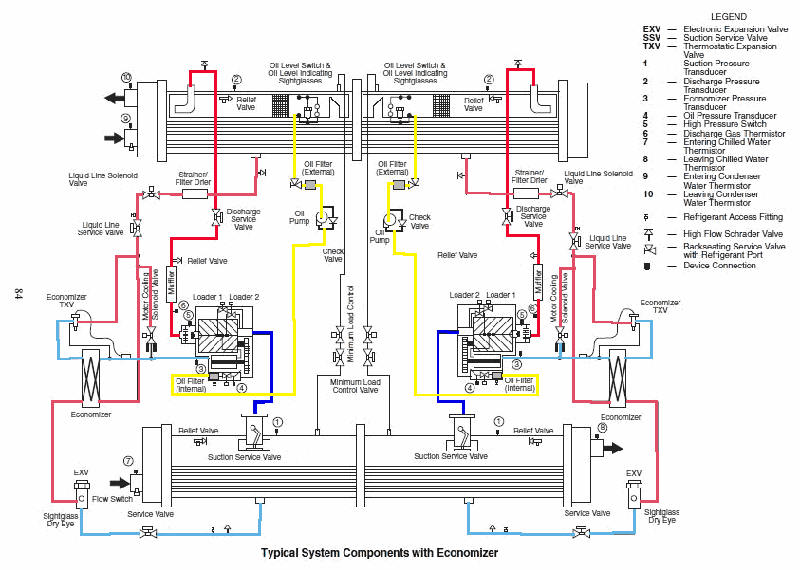

As shown the illustrated water-cooled rotary chiller refrigerant flow and lubricating oil circuits, which of the listed thermistors is used as a sensor for the electronic control circuit for the electronic expansion valve? See illustration GS-RA-29.
