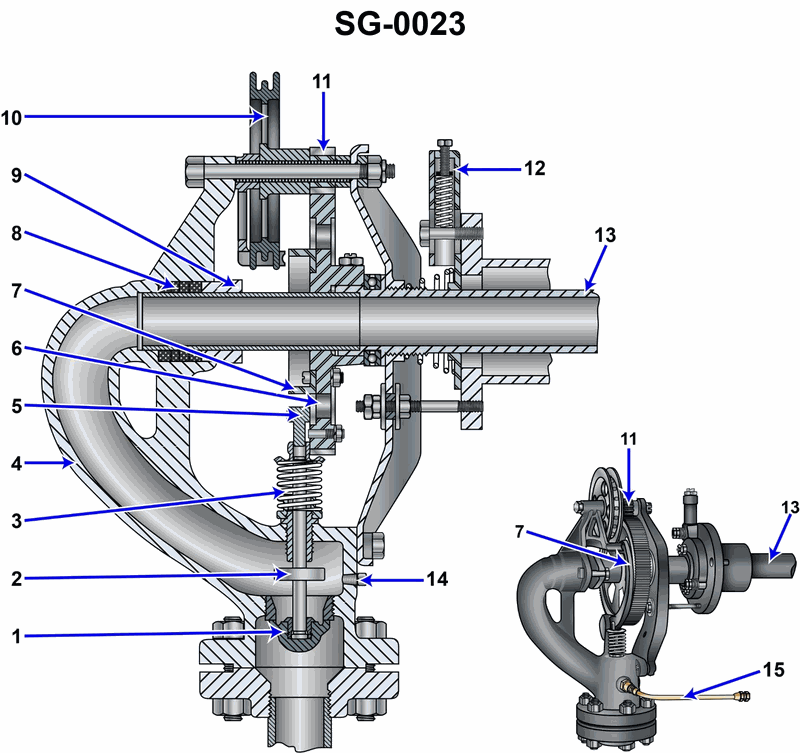

As shown on the illustrated soot blower diagram, what item is responsible for opening and closing the steam admission poppet valve at the appropriate times during element rotation? Illustration SG-0023

Back

Question 1 of 20

66636ef128f7522a1c521932

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Trace the steam flow path from the inlet to the blower element and identify which part acts as the poppet valve itself versus which part operates it. • Look at how the rotating shaft and cam/gear mechanism interact with the vertical valve stem and spring in the center of the housing. • Distinguish between parts that simply guide or seal steam and the part that actually times the opening and closing during rotation.

💭 Think About

• First, identify on the diagram which numbered part is the steam admission poppet valve and which is its valve stem and spring. Once you know that, ask: what moves this valve up and down? • Follow the mechanical linkage from the rotating gear/shaft on the right side to the vertical stem in the middle. Which numbered part directly converts the rotary motion into the up‑and‑down motion of the poppet valve? • Among choices 5, 6, 7, and 11, which one is clearly shaped or positioned like a cam or operating lever rather than a sealing surface, passage, or spring?

✅ Before You Answer

• Verify which number labels the poppet valve head seated at the steam inlet, and which number labels the valve stem/spring assembly. • Confirm that the part you choose is in direct mechanical contact with the valve stem so that its movement must cause the valve to lift off and reseat. • Make sure the chosen part is associated with the rotating drive mechanism (gears/shaft) so it can control valve timing as the element rotates.
