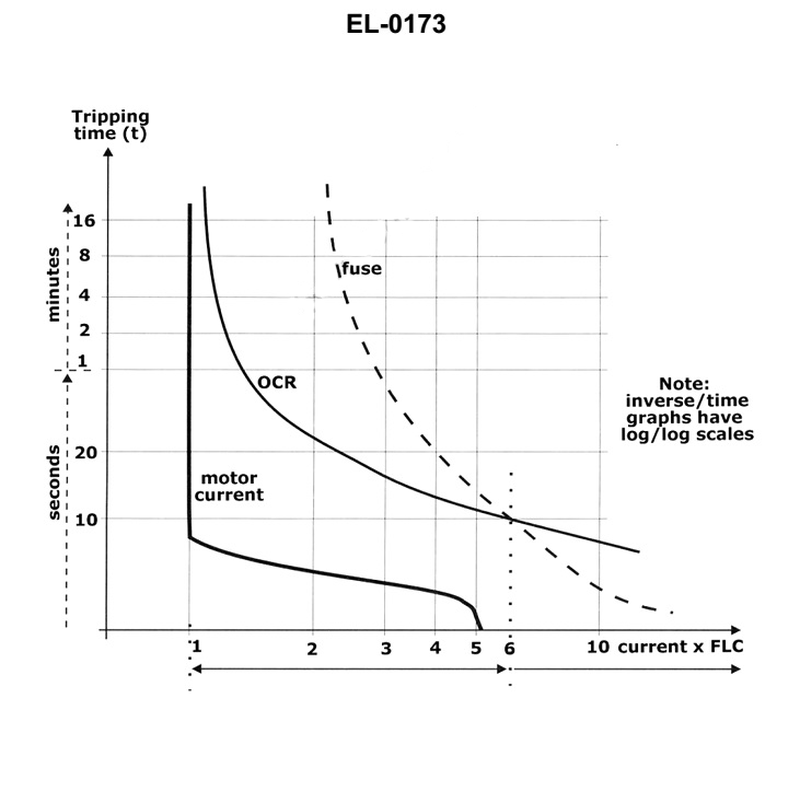

As shown in the tripping curves of the illustration, what is the name of the value at which the OCR and fuse tripping curves cross? See illustration EL-0173.
