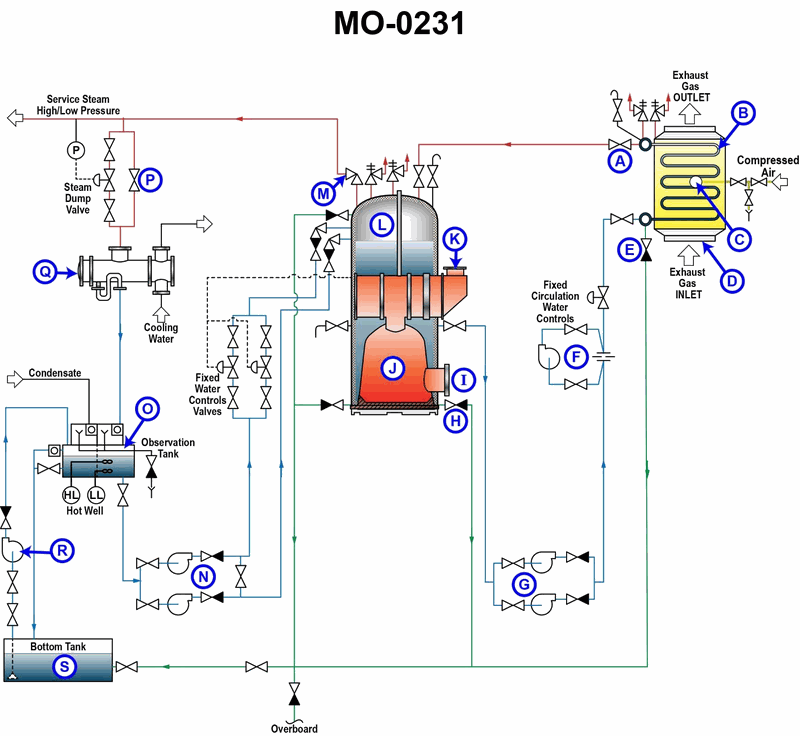

As shown in the illustration, the component labeled "N" would be identified as a ________. Illustration MO-0231

Back

Question 1 of 20

66636eed28f7522a1c51e2a2

As shown in the illustration, the component labeled "N" would be identified as a ________. Illustration MO-0231

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Trace the flow path of the condensate/feedwater from the hot well/observation tank toward the waste heat boiler and drum. • Identify where a boiler feed pump is normally located in relation to the hot well, condenser, and boiler in a steam plant. • Compare the suction and discharge connections of pump N with the lines going to the exhaust gas economizer and steam drum.

💭 Think About

• From which tank or component does pump N take suction, and where does it discharge? How does that match the typical duty of each pump type listed? • Which of the choices would normally handle water/condensate and be connected into the steam/water circuit, and which would instead be found on the fuel system or recirculation loop? • Look at the other labeled pumps (F, G, R). How do their positions and connected lines help you deduce the specific role of pump N?

✅ Before You Answer

• Confirm whether pump N is on a fuel line or a water/condensate line by following the line colors and destinations. • Verify if pump N appears to feed into the boiler/steam drum system or just circulate water within a closed loop. • Make sure you can distinguish between a condensate pump (from condenser/hot well toward feed system) and a boiler feed pump (raising pressure to supply the boiler).

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

As shown in the illustration, the component labeled "N" would be identified as a ________. Illustration MO-0231

main condensate pump

boiler water feed pump

fuel oil service pump

waste heat boiler circulating pump
