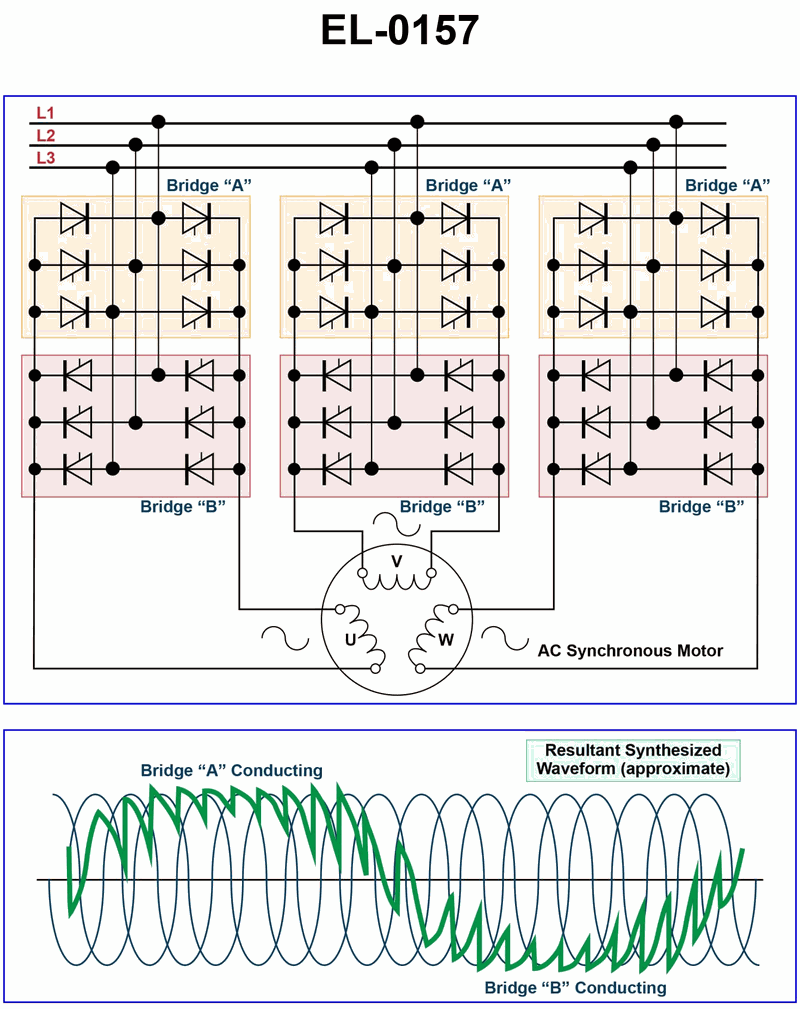

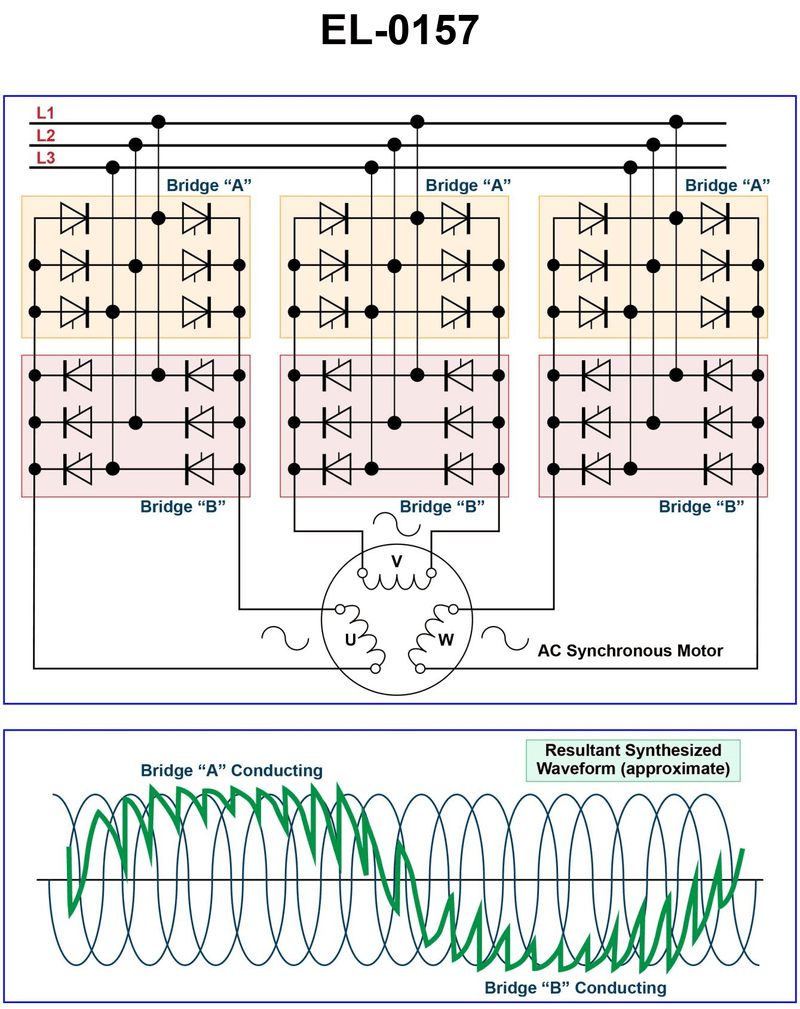

As shown in the illustration of a cycloconverter for an AC synchronous propulsion motor, what statement is true concerning the operating motor frequency? Illustration EL-0157
