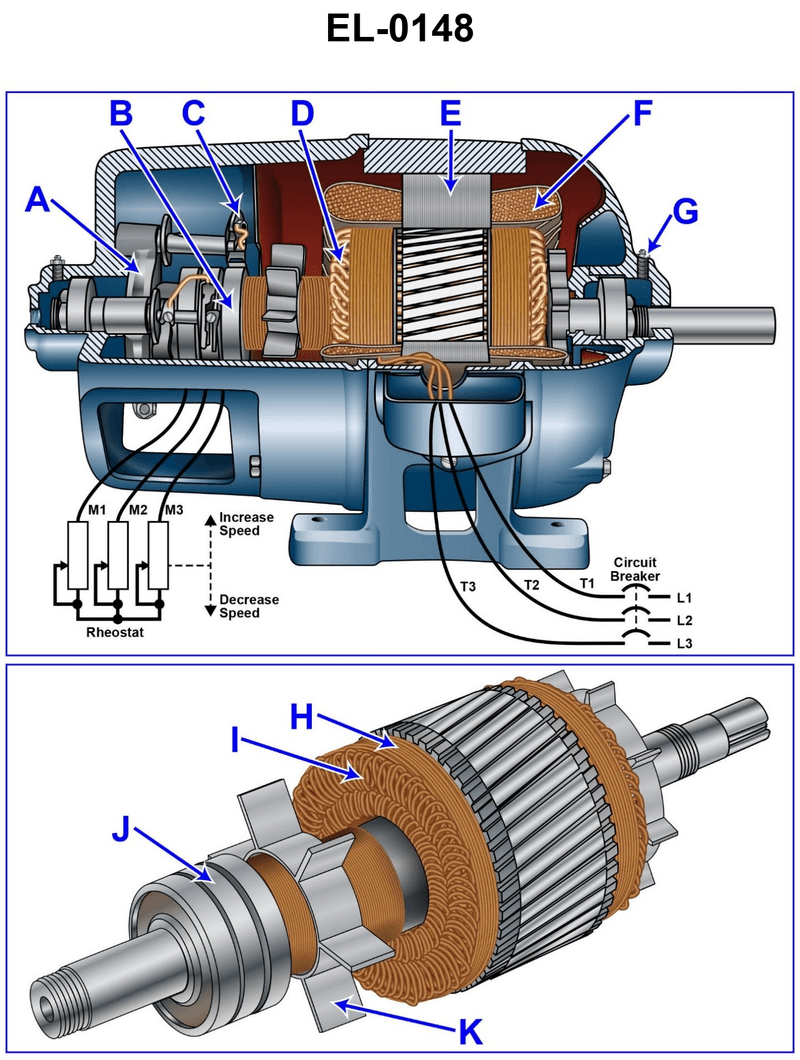

As shown in the illustrated wound-rotor induction motor, what statement is true concerning motor lead connections? Illustration EL-0148

Question

Accepted Answer

The "M1, M2, and M3" motor leads are connected to the rotor windings via slip rings and brushes and the "T1, T2, and T3" motor leads are directly connected to the stator windings.

Answer

The "T1, T2, and T3" motor leads are connected to the rotor windings via slip rings and brushes and the "M1, M2, and M3" motor leads are directly connected to the stator windings.

Answer

The "T1, T2, and T3" motor leads are directly connected to the rotor windings and the "M1, M2, and M3" motor leads are connected to the stator windings via slip rings and brushes.

Answer

The "M1, M2, and M3" motor leads are directly connected to the rotor windings and the "T1, T2, and T3" motor leads are connected to the stator windings via slip rings and brushes.
