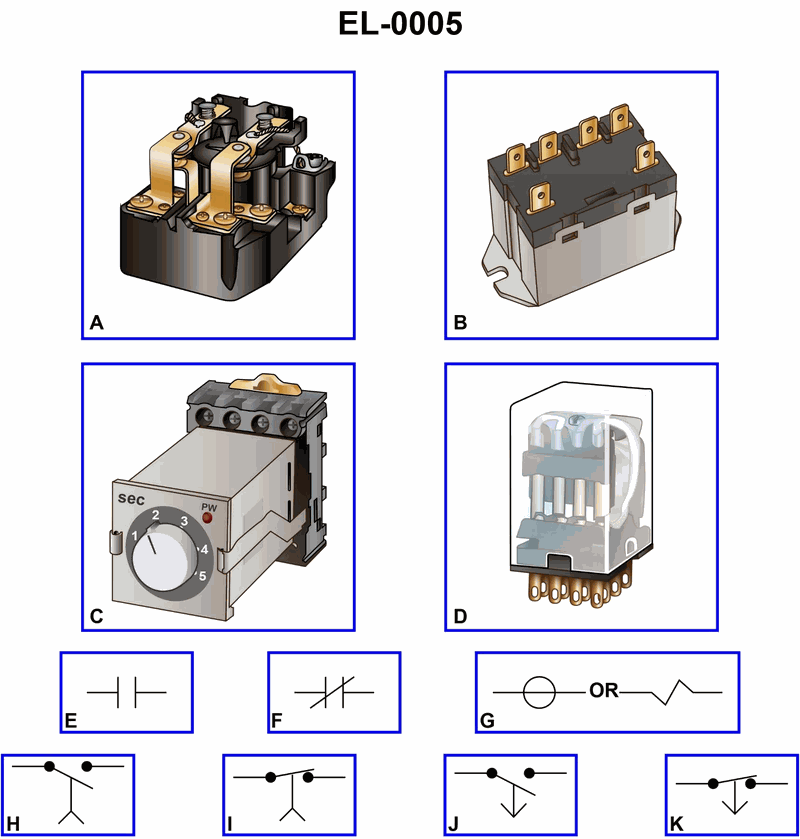

As shown in the illustrated devices and symbols, which of the symbols represents a normally open, timed open time delay relay contact? See illustration EL-0005.
