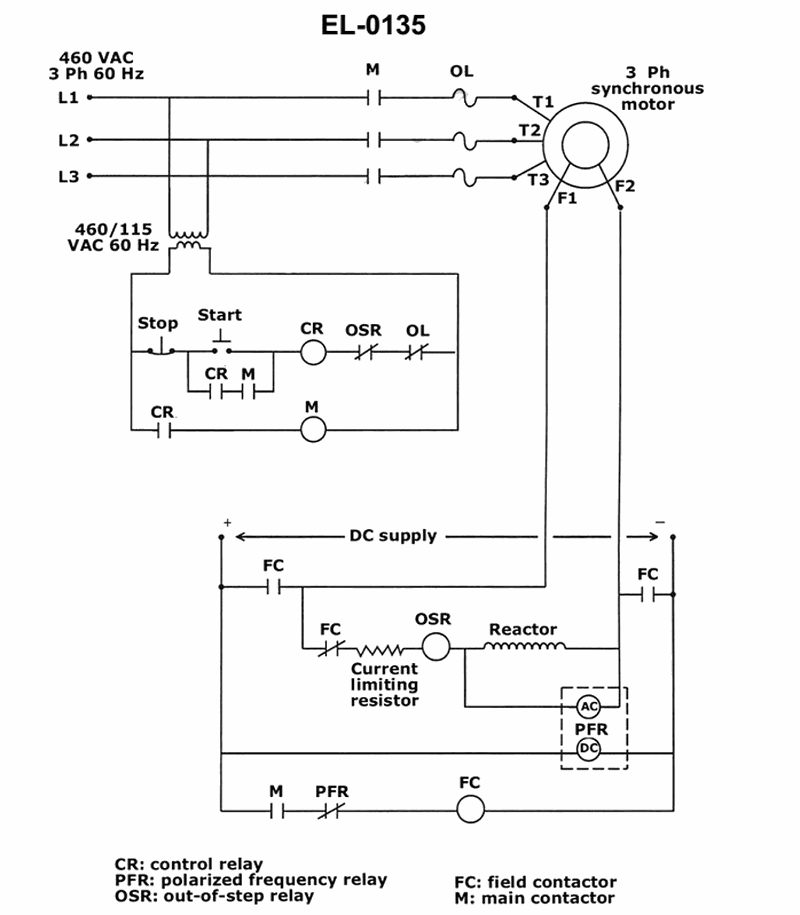

As shown in the illustrated 3 phase synchronous motor controller, what statement is true regarding motor start-up? See illustration EL-0135.
