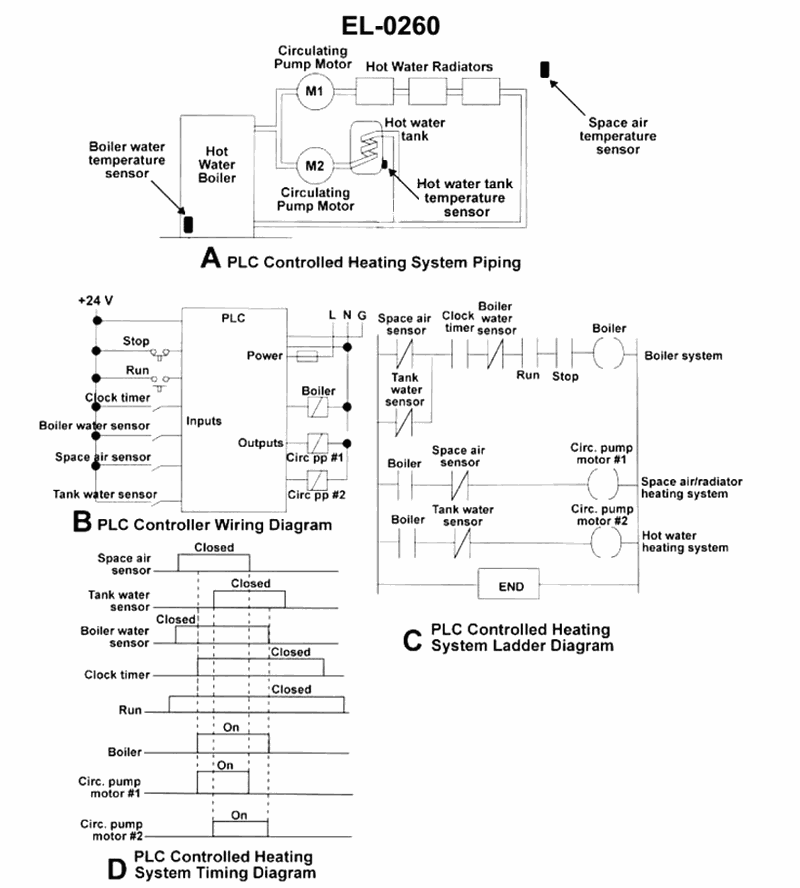

As shown in figures "A", "B", "C", and "D" of the illustrated PLC controlled heating system, what input requirements must be met for the circulating pump #2 to be running? See illustration EL-0260.
