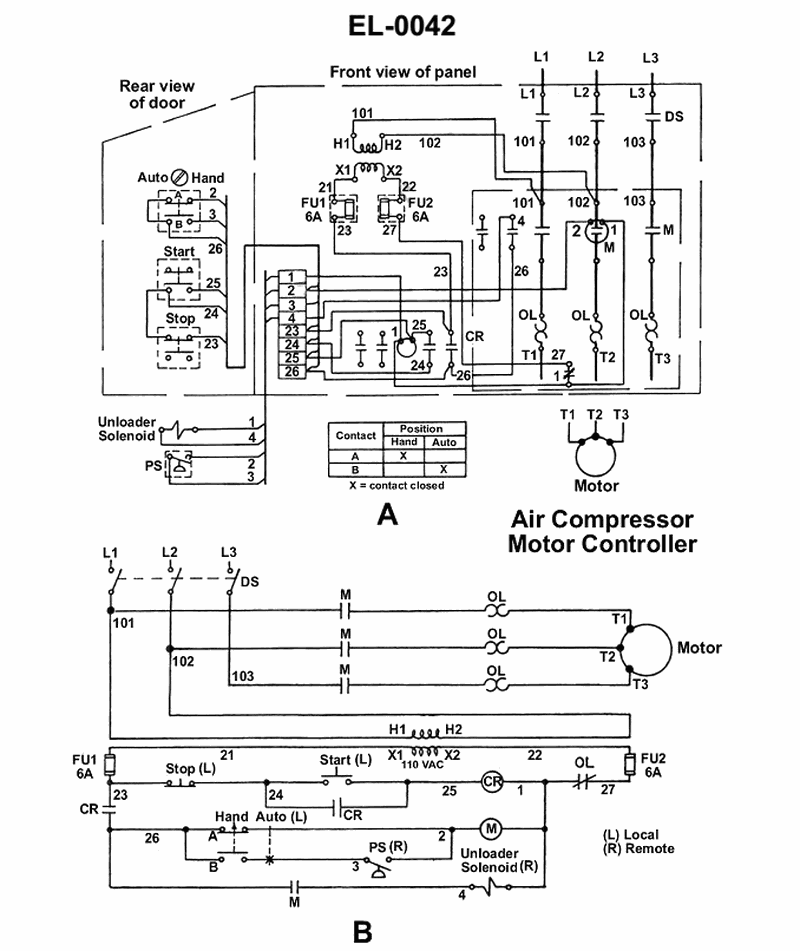

As shown in figures "A" and "B" of the illustration, what action is required to restart the compressor if the compressor drive motor trips out on overload? See illustration EL-0042. See illustration EL-0043.
A
First the start button must be depressed, then after releasing the start button, the overload reset button must be depressed. The motor will then immediately restart.
B
First the overload reset button must be depressed, then after releasing the OL reset button, the "hand-auto" selector switch must be placed in the "auto" position. The motor will then restart if the pressure switch is closed.
C
First the overload reset button must be depressed, then after releasing the OL reset button, the "hand-auto" selector switch must be placed in the "hand" position. The motor will then immediately restart.
D
First the overload reset button must be depressed, then after releasing the OL reset button, the start button must be depressed. The motor will then restart if the pressure switch is closed if in the "auto" mode. .
