Question 1 of 205eccefa3bacbc34ba4d480c5

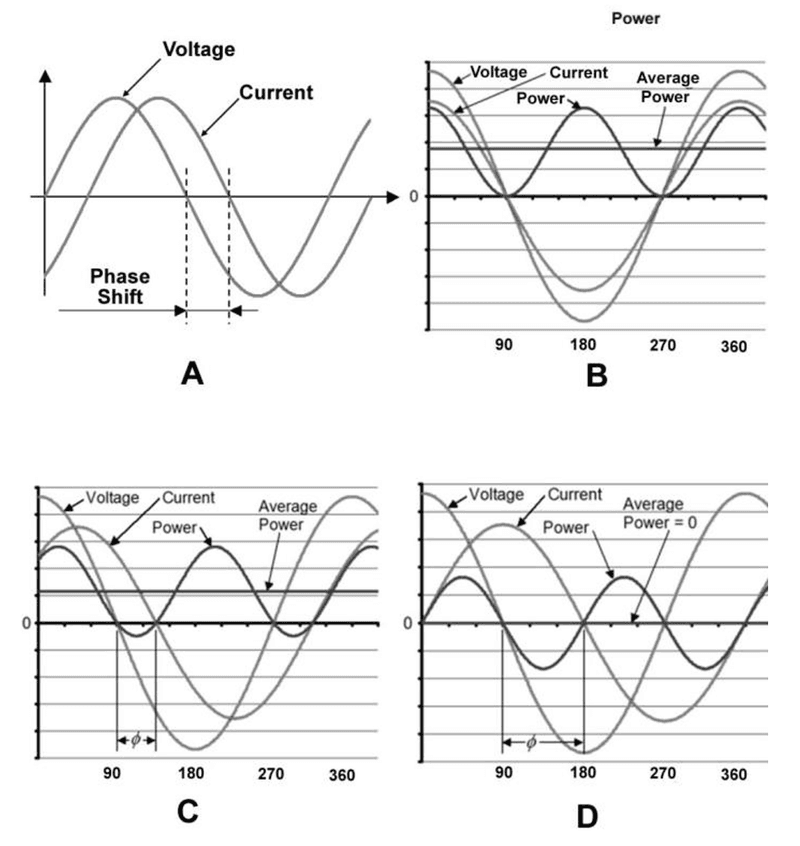

As shown in figure "C" of the illustration, what load type or combination of load types would produce the voltage, current, and power waveforms shown? See illustration EL-0112.

Back

Question 1 of 20

5eccefa3bacbc34ba4d480c5

As shown in figure "C" of the illustration, what load type or combination of load types would produce the voltage, current, and power waveforms shown? See illustration EL-0112.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Phase relationship between voltage and current for resistive, inductive, and capacitive loads • How real power (kW) and reactive effects show up in the power waveform • What happens to the power waveform when current leads or lags voltage

💭 Think About

• Look at when voltage and current cross zero: are they in phase, or does one lead/lag? How does that compare to a pure resistor, pure inductor, and pure capacitor? • Examine the power waveform: does it ever go negative, or is it always positive? What does that tell you about stored-and-returned energy versus dissipated energy? • If there is both reactive and resistive loading, how would the power waveform differ from a purely reactive case?

✅ Before You Answer

• Carefully note whether current leads or lags voltage in the figure and by approximately how many electrical degrees • Check whether instantaneous power (v × i) is always positive, sometimes zero, or goes negative at some points • Decide whether the waveform looks like a mix of real power plus reactive effects, or mostly/only reactive behavior
