As shown in figure "B" of the illustration,...

Question 1 / 205eccefa5bacbc34ba4d48841

Question 1 of 205eccefa5bacbc34ba4d48841

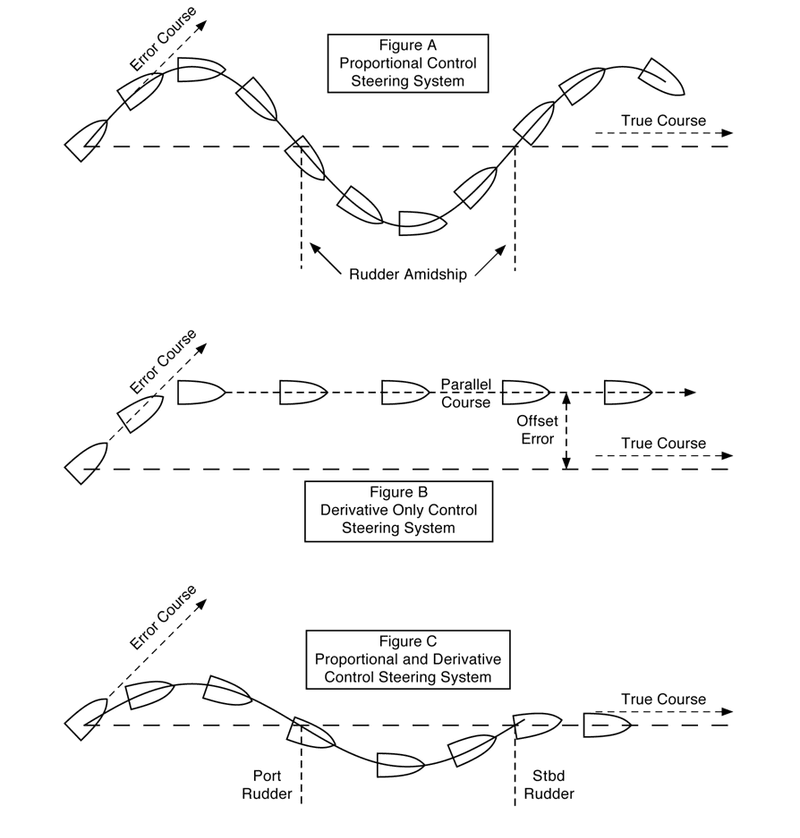

As shown in figure "B" of the illustration, which illustrates the effect of a applying a particular type of control, what type of control is applied? See illustration EL-0193.

Back

Question 1 of 20

5eccefa5bacbc34ba4d48841

As shown in figure "B" of the illustration, which illustrates the effect of a applying a particular type of control, what type of control is applied? See illustration EL-0193.

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• proportional control – output is directly related to the size (magnitude) of the error at that instant • integral control – output depends on the accumulated (past) error over time, tends to eliminate steady‑state offset but responds more slowly • derivative control – output depends on the rate of change (slope) of the error, tends to react to how fast the error is changing

💭 Think About

• Look at figure B and ask: Is the controller reacting mainly to the size of the error, to the buildup of error over time, or to how fast the error is changing? • Does the response in figure B show overshoot being reduced and the system anticipating changes, or does it mainly remove steady‑state error after some delay? • Compare figure B to the ‘basic’ proportional response (usually in figure A); what extra behavior is added or removed in B?

✅ Before You Answer

• Check whether there is a steady‑state offset (a small final error that remains) or if the output eventually lines up exactly with the setpoint. • Check if the response in figure B shows a faster reaction to changes but less steady‑state accuracy, which is characteristic of derivative action. • Check whether the waveform in B looks like a simple scaled version of the error (proportional), an effect that grows with time when error persists (integral), or a response that is strong when the error is changing quickly and weaker when the error is steady (derivative).

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

As shown in figure "B" of the illustration, which illustrates the effect of a applying a particular type of control, what type of control is applied? See illustration EL-0193.

derivitive control only

integral control only

proportional control only

both proportional and derivative control
