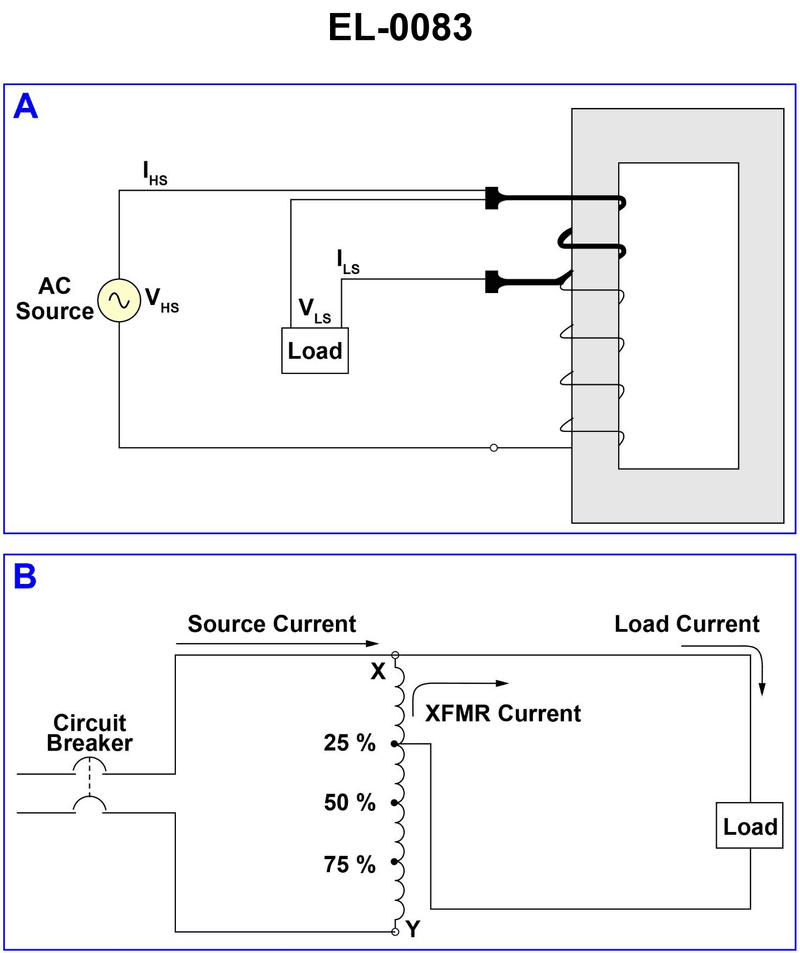

As shown in figure "B" of the illustration, if the source voltage at the branch circuit breaker is 220 VAC, what would be the applied voltage to the load? Illustration EL-0083
