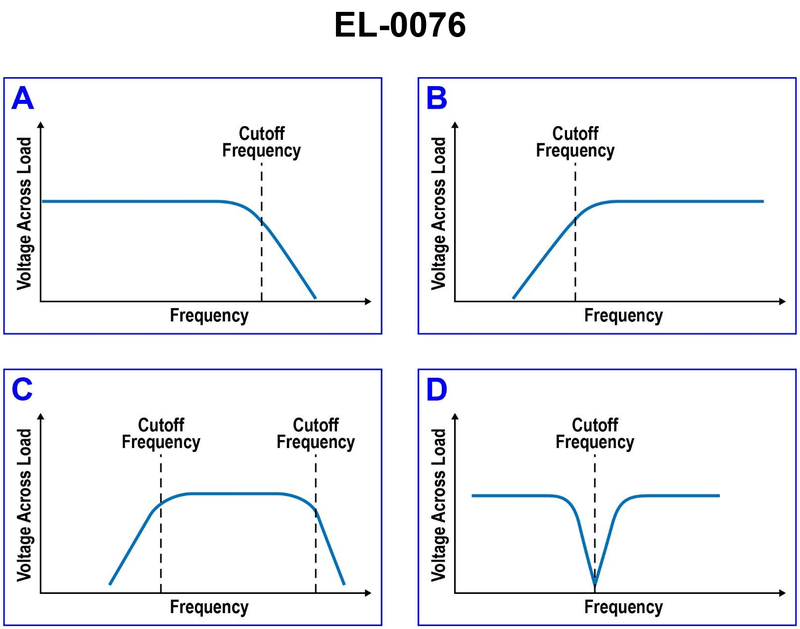

As shown in figure "A" of the illustration, what is true concerning the illustrated frequency response curve? Illustration EL-0076

Back

Question 1 of 20

66636eed28f7522a1c51dad6

As shown in figure "A" of the illustration, what is true concerning the illustrated frequency response curve? Illustration EL-0076

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Think about how a low-pass filter behaves versus a high-pass filter. • Notice in curve A what happens to the output voltage level as frequency increases past the cutoff point. • Relate "passed" to where the curve is relatively flat and high, and "attenuated" to where it drops off.

💭 Think About

• On figure A, at very low frequencies, is the voltage across the load high or low? What does that suggest about whether low frequencies are passed or attenuated? • As you move to frequencies well above the labeled cutoff, what happens to the voltage? Does that behavior match "passed" or "attenuated" for high frequencies? • Compare the shape of A with a typical low‑pass, high‑pass, band‑pass, or band‑stop filter response. Which family does it most resemble?

✅ Before You Answer

• Verify whether below the cutoff the output voltage is approximately constant or near zero. • Verify whether above the cutoff the output voltage remains high or falls off sharply. • Match this observed behavior with the wording "passed" (little change) or "attenuated" (strongly reduced) in the answer choices.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

As shown in figure "A" of the illustration, what is true concerning the illustrated frequency response curve? Illustration EL-0076

Low frequencies below the cutoff-frequency are attenuated and high frequencies above the cutoff- frequency are passed.

Low frequencies below the cutoff-frequency are passed and high frequencies above the cutoff-frequency are attenuated.

Low frequencies below the cutoff-frequency are passed and high frequencies above the cutoff-frequency are passed.

Low frequencies below the cutoff-frequency are attenuated and high frequencies above the cutoff- frequency are attenuated.
