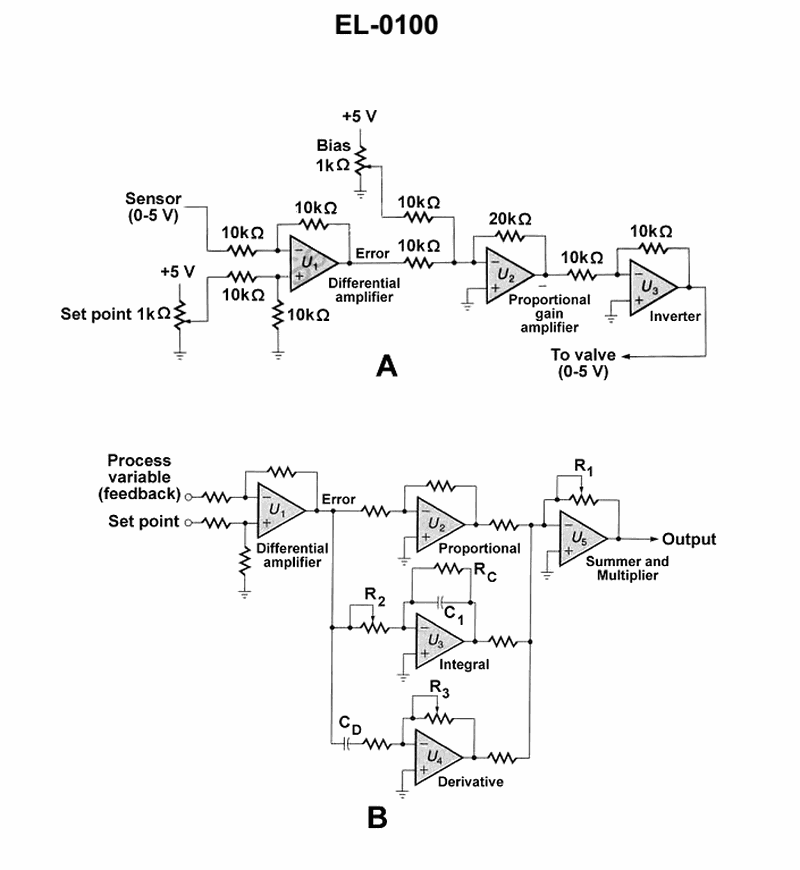

As shown in figure "A" of the illustrated proportional analog controller circuit, what is the primary purpose of operational amplifier "U3"? See illustration EL-0100.
