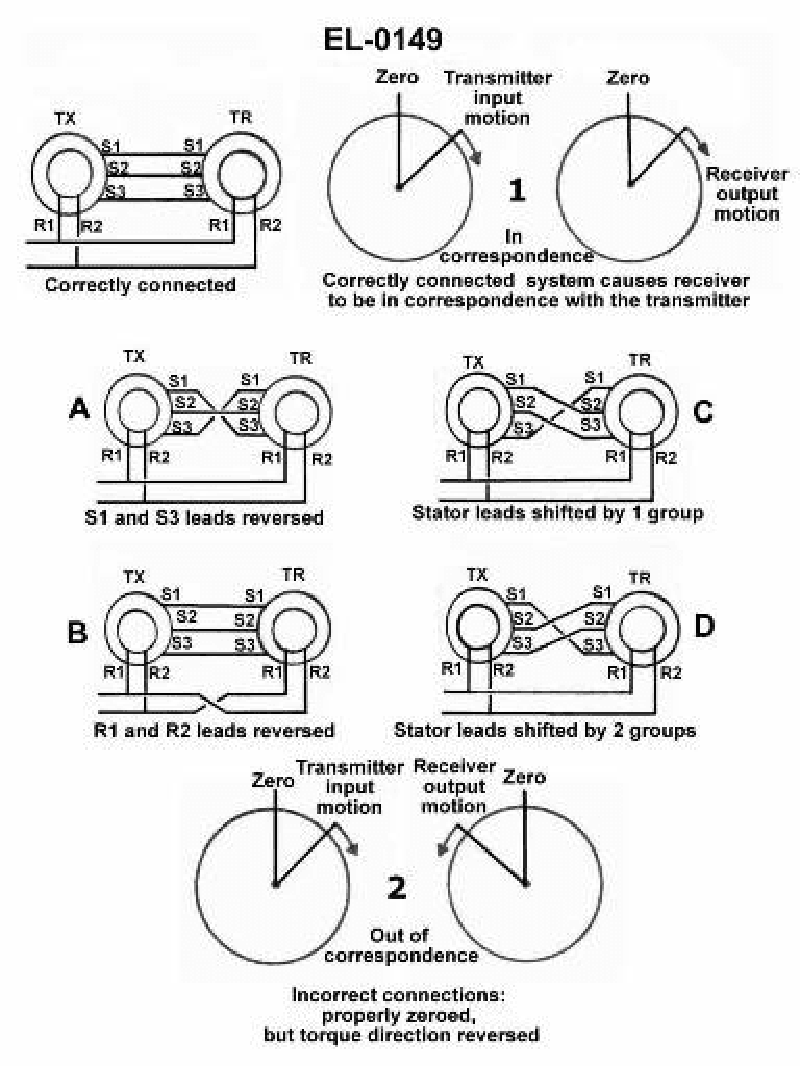

As shown in figure "1" of the illustration, a correctly connected synchronous transmission causes the receiver to be in correspondence with the transmitter. If the receiver is out of correspondence, properly zeroed, but the torque direction is reversed as shown in figure "2", what figure shows the incorrect connections responsible for this condition? See illustration EL-0149.
