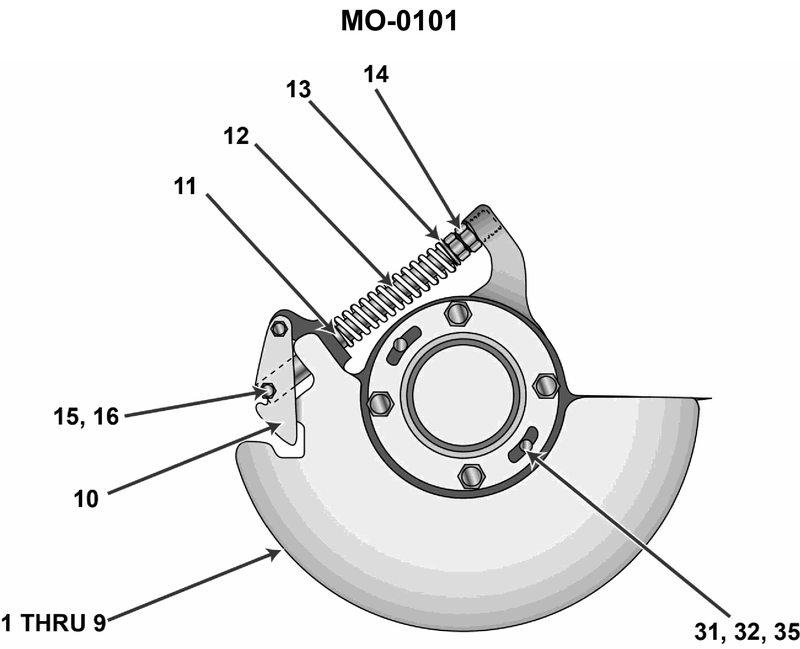

An engine is equipped with the overspeed trip similar to that shown in the illustration. The throw out weight is designed to run at 900 RPM and trip out at 10% overspeed. However, the overspeed trip is currently activating at 930 RPM. In order to correct this problem, __________. Illustration MO-0101

Back

Question 1 of 20

5eccefa1bacbc34ba4d4774a

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Centrifugal force acting on the throw-out weight versus resisting force of spring #12 • Relationship between set speed, overspeed percentage, and trip point RPM • How changing spring compression or weight size affects the RPM at which the trip will activate

💭 Think About

• Is the overspeed trip activating at a higher RPM than desired, or at a lower RPM than desired? What does that tell you about whether the mechanism is too sensitive or not sensitive enough? • If you want the trip to occur at a higher RPM, should the centrifugal force needed to move the weight be increased or decreased? Which adjustment would accomplish that? • Consider each option: which ones would increase centrifugal force at a given speed, and which would increase the resisting force holding the weight in? How would each shift the trip RPM?

✅ Before You Answer

• Compute the correct trip RPM for 10% overspeed on a 900 RPM setting and compare it to 930 RPM. • Decide whether the spring force needs to be stronger or weaker to delay tripping until the correct RPM. • Eliminate any options that would clearly cause the device to trip even earlier (at an even lower RPM).

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

decrease compression on spring #12

install a larger throw out weight piece #10

increase compression on spring #12

change the angle of the operating face by machining piece #10
