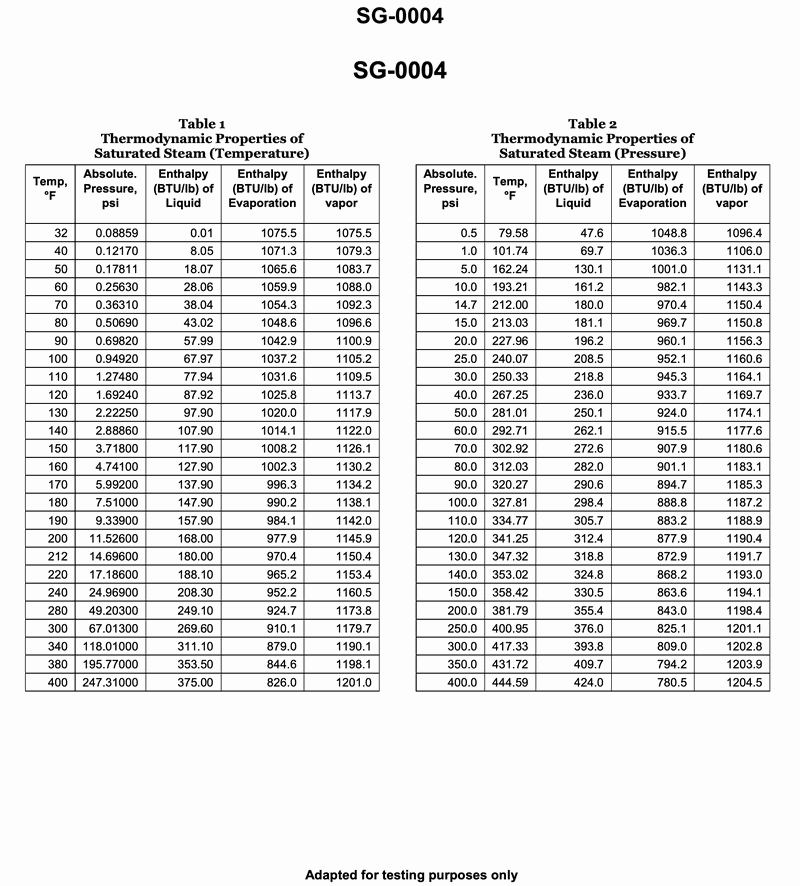

According to the illustrated steam tables, what would be the latent heat of vaporization for boiler water if the auxiliary boiler was operating at 135.3 psig? Illustration SG-0004

Back

Question 1 of 20

66636ef128f7522a1c523513

According to the illustrated steam tables, what would be the latent heat of vaporization for boiler water if the auxiliary boiler was operating at 135.3 psig? Illustration SG-0004

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Difference between psig (gauge pressure) and psia (absolute pressure)** • Where to find latent heat of vaporization in Table 2 – Thermodynamic Properties of Saturated Steam (Pressure) • Meaning of enthalpy of evaporation vs enthalpy of liquid and enthalpy of vapor

💭 Think About

• How do you convert the boiler pressure given in psig to the absolute pressure values listed in the steam table? • Once you have the correct absolute pressure, which column in Table 2 represents the latent heat of vaporization? • Compare the value you read from that column with the answer choices—does one match closely without needing interpolation?

✅ Before You Answer

• Be sure you add atmospheric pressure (about 14.7 psi) to convert from psig to psia before entering the table. • Confirm you are using Table 2 (pressure-based), not Table 1 (temperature-based). • Verify you are reading from the Enthalpy (BTU/lb) of Evaporation column, not the liquid or total vapor enthalpy columns.

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

According to the illustrated steam tables, what would be the latent heat of vaporization for boiler water if the auxiliary boiler was operating at 135.3 psig? Illustration SG-0004

330.5 BTU/lb.

358.42 BTU/lb.

863.6 BTU/lb.

1194.1 BTU/lb.
