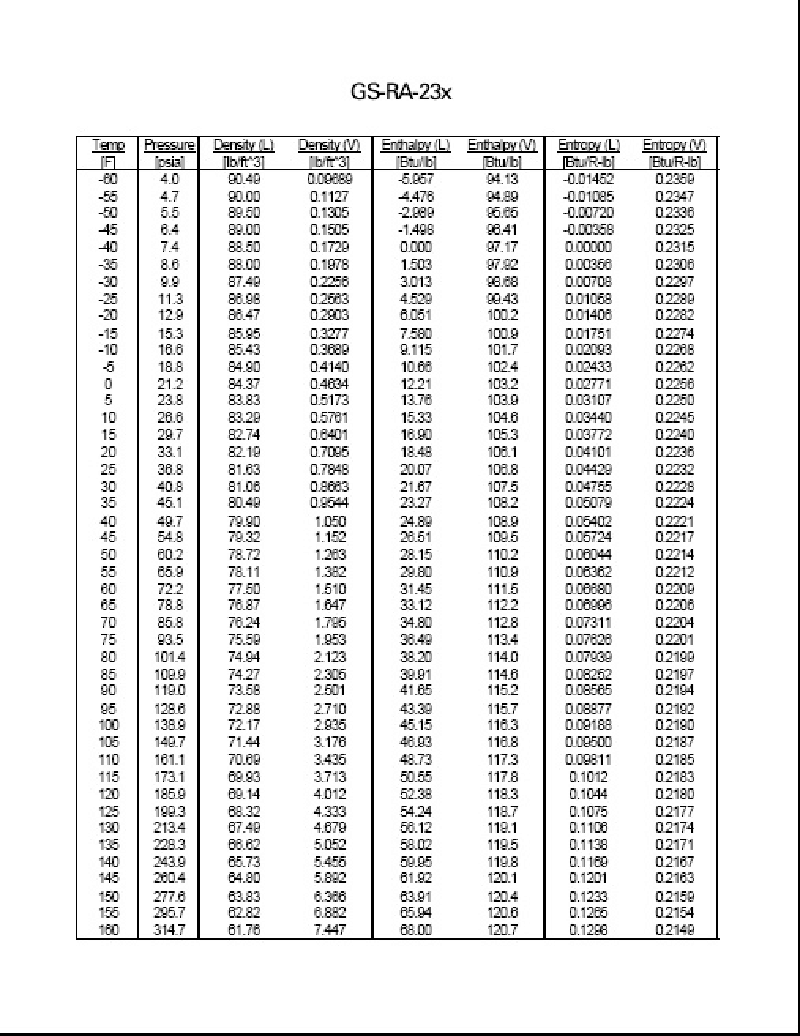

According to the data provided in the illustrated table, if the low side saturation temperature is maintained at 5°F and the high side saturation temperature is maintained at 86°F, what is the compression ratio of the system's compressor? See illustration GS-RA-23.

Back

Question 1 of 20

5eccef9dbacbc34ba4d45f4f

No comments yet

Be the first to share your thoughts!

If the question has a related picture, it will appear here.

🔍 Key Concepts

• Use the table to find the saturation pressure (psia) that corresponds to 5°F on the low side and 86°F on the high side • Compression ratio for a vapor‑compression system is typically discharge absolute pressure ÷ suction absolute pressure • Be careful about the difference between psia (absolute) and psig (gauge) when deciding whether you have enough data

💭 Think About

• From the table, what is the pressure (in psia) at 5°F, and what is the pressure (in psia) at 86°F? • If you divide the higher saturation pressure by the lower saturation pressure, which of the answer choices is closest to that ratio? • Does the table already give you absolute pressures, or would you need additional information (like atmospheric pressure) to convert them?

✅ Before You Answer

• Confirm that the pressures in the table are labeled psia, not psig • Verify you are using the correct rows for 5°F and 86°F (interpolate only if necessary) • After computing the ratio, compare carefully with each option to see which value your result is closest to

👋 Hi! I'm Genie, your AI study assistant. How can I help you with this question?

Quick actions

— No credit card needed

Question 1 of 20

4.68 to 1

10.65 to 1

17.2 to 1

The compression ratio cannot be calculated from this data
